Danfoss Overhaul Kit, PM, Size 65 (V-Cone) - Code Number 027F3386 Installation Guide
Summary
This comprehensive overhaul kit (Code 027F3386) provides everything needed to maintain or repair pneumatic components utilizing a V-cone connection (PM size 65). The accompanying manual serves as detailed technical documentation, outlining assembly procedures, precise measurements, and necessary spare parts specifications. It is designed for trained technicians and industrial maintenance professionals who require reliable instructions for the safe and efficient overhaul of DANFOSS equipment.
Page 1 Text Content

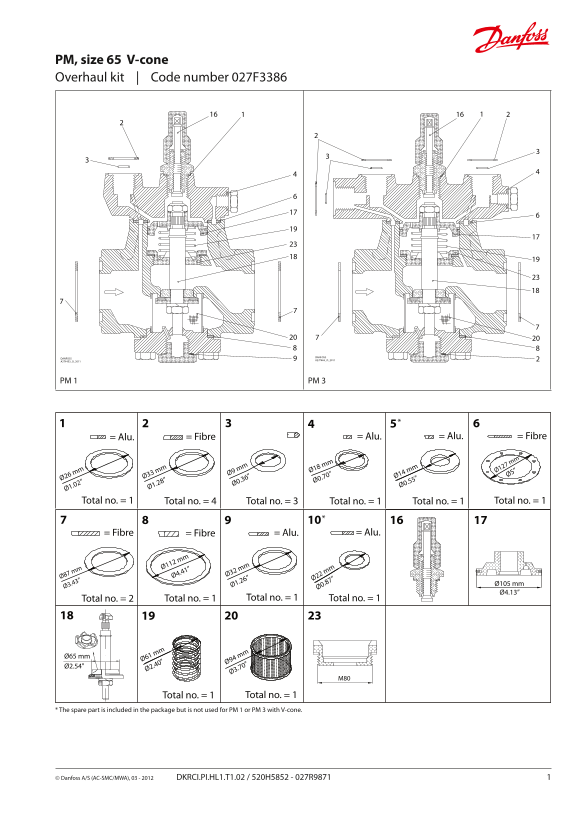

PM, size 65 V-cone Overhaul kit | Code number 027F3386
DANFOSS DANFOSS A27F453_O_2011 A27F465_O_2011
PM 1 PM 3
= Alu. = Fibre = Alu. = Alu. = Fibre
Ø18 mm Ø127 mm
Ø9 mm Ø5”
Ø33 mm Ø14 mm
Ø26 mm
Total no. = 1 Total no. = 4 Total no. = 3 Total no. = 1 Total no. = 1 Total no. = 1
= Fibre = Fibre = Alu. = Alu.
Ø112 mm
Ø4.41” Ø32 mm
Ø87 mm
Ø22 mm
Ø1.26” Ø105 mm
Total no. = 2 Total no. = 1 Total no. = 1 Total no. = 1
Ø65 mm
Ø61 mm
Ø94 mm
Total no. = 1Total no. = 1
* The spare part is included in the package but is not used for PM 1 or PM 3 with V-cone.
Danfoss A/S (AC-SMC/MWA), 03 - 2012 DKRCI.PI.HL1.T1.02 / 520H5852 - 027R9871 1
