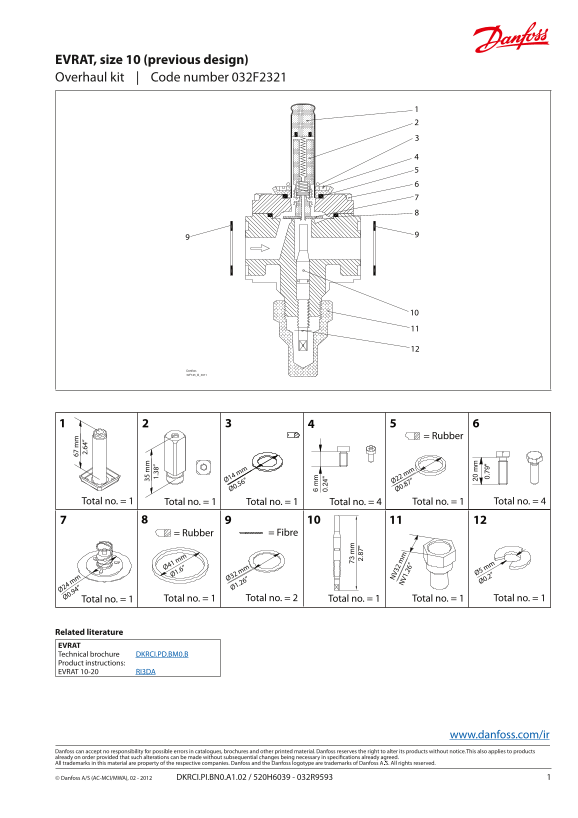

EVRAT, size 10 (previous design) Overhaul kit | Code number 032F2321
Danfoss 32F143_O_2011
NV NV 1.
= Rubber
Ø14 mm Ø22 mm
Total no. = 1 Total no. = 1 Total no. = 1 Total no. = 4 Total no. = 1 Total no. = 4
= Rubber = Fibre
Ø41 mm
Ø1.6” Ø5 mm
Ø32 mm
Ø24 m Ø0.94” Total no. = 1 Total no. = 1 Total no. = 2 Total no. = 1 Total no. = 1Total no. = 1
Related literature EVRAT Technical brochure DKRCI.PD.BM0.B Product instructions: EVRAT 10-20 RI3DA
www.danfoss.com/ir
Danfoss A/S (AC-MCI/MWA), 02 - 2012 DKRCI.PI.BN0.A1.02 / 520H6039 - 032R9593 1
