Danfoss Overhaul Kit, EVRA, Size 15 (Previous Design) - Code Number 032F2209 Installation Guide
Summary
This comprehensive guide provides technical specifications and installation instructions for the EVRA Overhaul Kit. It details component requirements, dimensions, and compatibility across multiple Danfoss valve models and variants. Ideal for professional HVAC technicians, maintenance engineers, and industrial service personnel responsible for routine servicing, troubleshooting, or complete overhaul of associated systems.
Page 1 Text Content

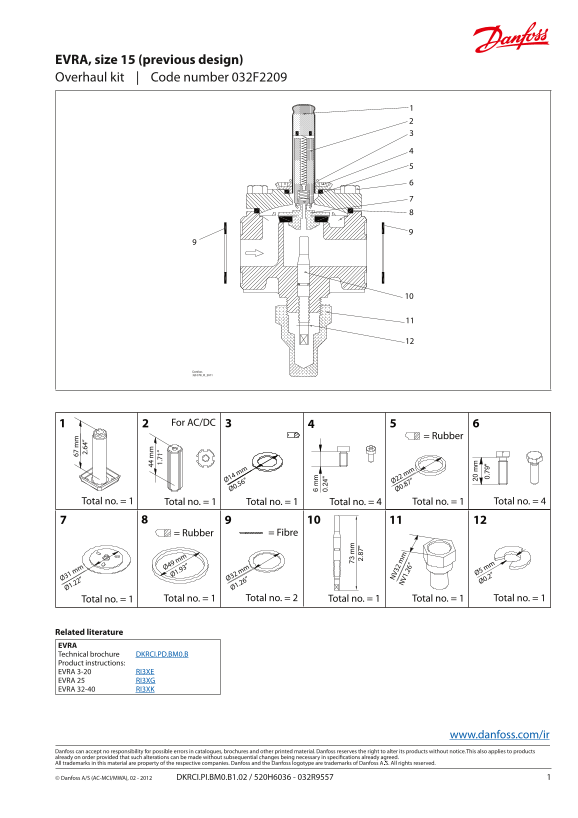

EVRA, size 15 (previous design) Overhaul kit | Code number 032F2209
Danfoss 32F378_O_2011
NV NV 1.
For AC/DC 3 4 6
= Rubber
Ø14 mm Ø22 mm
Total no. = 1 Total no. = 1 Total no. = 1 Total no. = 4 Total no. = 1 Total no. = 4
= Rubber = Fibre
Ø49 mm
Ø1.93” Ø5 mm
Ø31 mm Ø32 mm
Ø1.22” Ø1.26” Total no. = 1 Total no. = 1 Total no. = 2 Total no. = 1 Total no. = 1Total no. = 1
Related literature EVRA Technical brochure DKRCI.PD.BM0.B Product instructions: EVRA 3-20 RI3XE EVRA 25 RI3XG EVRA 32-40 RI3XK
www.danfoss.com/ir
Danfoss A/S (AC-MCI/MWA), 02 - 2012 DKRCI.PI.BM0.B1.02 / 520H6036 - 032R9557 1
