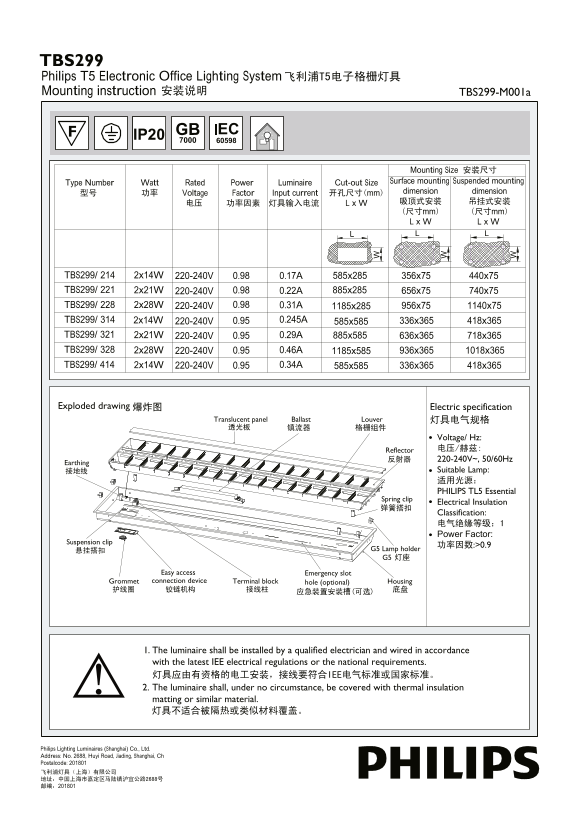

TBS299
Philips T5 Electronic Office Lighting System 飞利浦T5电子格栅灯具
Mounting instruction 安装说明 TBS299-M001a
Mounting Size 安装尺寸 Type Number Watt Rated Power Luminaire Cut-out Size Surface mounting Suspended mounting 型号 功率 Voltage Factor Input current 开孔尺寸(mm) dimension dimension 电压 功率因素 灯具输入电流 L x W 吸顶式安装 吊挂式安装 (尺寸mm) (尺寸mm) L x W L x W
TBS299/ 214 2x14W 220-240V 0.98 0.17A 585x285 356x75 440x75 TBS299/ 221 2x21W 220-240V 0.98 0.22A 885x285 656x75 740x75
TBS299/ 228 2x28W 220-240V 0.98 0.31A 1185x285 956x75 1140x75
TBS299/ 314 2x14W 220-240V 0.95 0.245A 585x585 336x365 418x365
TBS299/ 321 2x21W 220-240V 0.95 0.29A 885x585 636x365 718x365 TBS299/ 328 2x28W 220-240V 0.95 0.46A 1185x585 936x365 1018x365 TBS299/ 414 2x14W 220-240V 0.95 0.34A 585x585 336x365 418x365
Exploded drawing 爆炸图 Electric specification
Translucent panel Ballast Louver 灯具电气规格 透光板 镇流器 格栅组件
Voltage/ Hz: Reflector 电压/赫兹: 反射器 220-240V~, 50/60Hz
Earthing
接地线 Suitable Lamp: 适用光源： PHILIPS TL5 Essential
Spring clip
Electrical Insulation
Classification: 电气绝缘等级：1 Power Factor:
Suspension clip
悬挂搭扣 G5 Lamp holder G5 灯座
Easy access Emergency slot Grommet connection device Terminal block hole (optional) Housing
1. The luminaire shall be installed by a quali ed electrician and wired in accordance with the latest IEE electrical regulations or the national requirements. 灯具应由有资格的电工安装，接线要符合IEE电气标准或国家标准。 2. The luminaire shall, under no circumstance, be covered with thermal insulation matting or similar material. 灯具不适合被隔热或类似材料覆盖。
Philips Lighting Luminaires (Shanghai) Co., Ltd. Address: No. 2688, Huyi Road, Jiading, Shanghai, Ch Postalcode: 201801 飞利浦灯具（上海）有限公司 地址：中国上海市嘉定区马陆镇沪宜公路2688号 邮编：201801
