The Philips TMS011 linear fluorescent lighting fixture mounting instruction provides complete installation specifications for this commercial luminaire series. Available in multiple lengths (620mm to 1520mm) and configurations including standard and GMP variants, the TMS011 operates at 220-240V/50Hz with prepainted imported steel sheet construction. Includes detailed mounting dimensions, suspension accessory information, electrical wiring diagrams for electronic ballast configurations, and F-mar

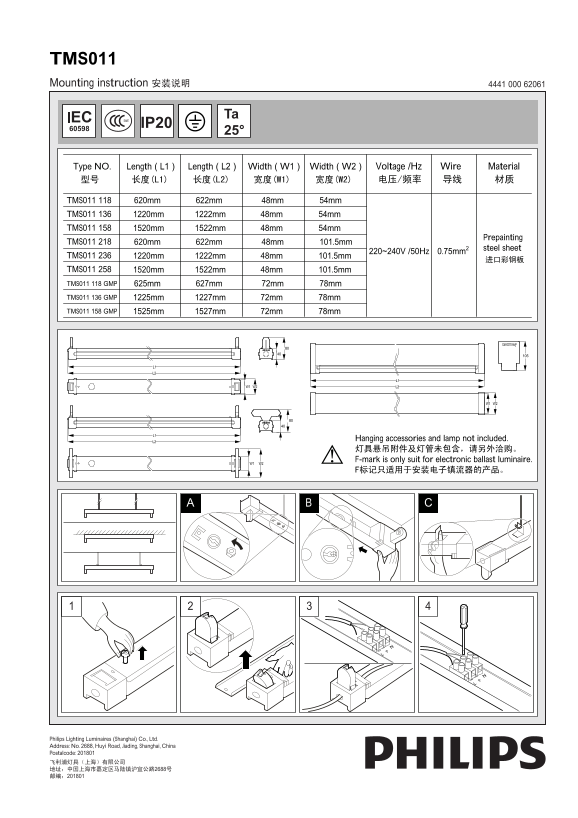

Page 1 Text Content
TMS011 Mounting instruction 安装说明 4441 000 62061
Type NO. Length ( L1 ) Length ( L2 ) Width ( W1 ) Width ( W2 ) Voltage /Hz Wire Material 型号 长度(L1) 宽度(W1) 宽度(W2)长度(L2) 电压/频率 导线 材质
TMS011 118 620mm 622mm 48mm 54mm TMS011 136 1220mm 1222mm 48mm 54mm TMS011 158 1520mm 1522mm 48mm 54mm
Prepainting
TMS011 218 620mm 622mm 48mm 101.5mm
steel sheet 220~240V /50Hz
0.75mm2
TMS011 236 1220mm 1222mm 48mm 101.5mm
TMS011 258 1520mm 1522mm 48mm 101.5mm TMS011 118 GMP 625mm 627mm 72mm 78mm TMS011 136 GMP 1225mm 1227mm 72mm 78mm TMS011 158 GMP 1525mm 1527mm 72mm 78mm
Hanging accessories and lamp not included. 灯具悬吊附件及灯管未包含，请另外洽购。 F-mark is only suit for electronic ballast luminaire. F标记只适用于安装电子镇流器的产品。
Philips Lighting Luminaires (Shanghai) Co., Ltd. Address: No. 2688, Huyi Road, Jiading, Shanghai, China Postalcode: 201801 飞利浦灯具（上海）有限公司 地址：中国上海市嘉定区马陆镇沪宜公路2688号 邮编：201801
