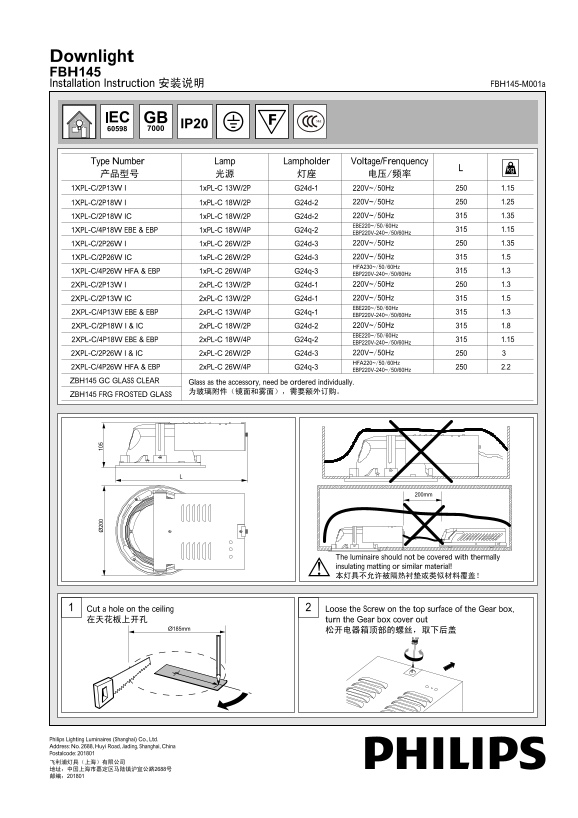

Downlight FBH145 Installation Instruction 安装说明 FBH145-M001a

Lamp Type Number Lampholder Voltage/Frenquency

产品型号光源灯座电压/频率 1XPL-C/2P13W I 1x PL-C 13W/2P G24d-1 220V~/50Hz 1.15

1XPL-C/2P18W I 1x PL-C 18W/2P G24d-2 220V~/50Hz 1.25

1XPL-C/2P18W IC 1x PL-C 18W/2P G24d-2 220V~/50Hz 1.35 EBE220~/50/60Hz

1XPL-C/4P18W EBE & EBP 1x PL-C 18W/4P G24q-2 1.15

EBP220V-240~/50/60Hz 1XPL-C/2P26W I 1x PL-C 26W/2P G24d-3 220V~/50Hz 1.35 1XPL-C/2P26W IC 1x PL-C 26W/2P G24d-3 220V~/50Hz 1.5 HFA230~/50/60Hz

1XPL-C/4P26W HFA & EBP 1x PL-C 26W/4P G24q-3 1.3

EBP220V-240~/50/60Hz 2XPL-C/2P13W I 2x PL-C 13W/2P G24d-1 220V~/50Hz 1.3 2XPL-C/2P13W IC 2x PL-C 13W/2P G24d-1 220V~/50Hz 1.5 EBE220~/50/60Hz

2XPL-C/4P13W EBE & EBP 2x PL-C 13W/4P G24q-1 1.3

EBP220V-240~/50/60Hz 2XPL-C/2P18W I & IC 2x PL-C 18W/2P G24d-2 220V~/50Hz 1.8 EBE220~/50/60Hz

2XPL-C/4P18W EBE & EBP 2x PL-C 18W/4P G24q-2 1.15

EBP220V-240~/50/60Hz 2XPL-C/2P26W I & IC 2x PL-C 26W/2P G24d-3 220V~/50Hz HFA220~/50/60Hz

2XPL-C/4P26W HFA & EBP 2x PL-C 26W/4P G24q-3 2.2

EBP220V-240~/50/60Hz

ZBH145 GC GLASS CLEAR Glass as the accessory, need be ordered individually.

ZBH145 FRG FROSTED GLASS

200mm

The luminaire should not be covered with thermally insulating matting or similar material! 本灯具不允许被隔热衬垫或类似材料覆盖！

Cut a hole on the ceiling Loose the Screw on the top surface of the Gear box, 在天花板上开孔 turn the Gear box cover out

Ø185mm 松开电器箱顶部的螺丝，取下后盖

Philips Lighting Luminaires (Shanghai) Co., Ltd. Address: No. 2688, Huyi Road, Jiading, Shanghai, China Postalcode: 201801 飞利浦灯具（上海）有限公司地址：中国上海市嘉定区马陆镇沪宜公路2688号邮编：201801
