Philips LRC5414 00 LightMaster Modular 4LS Controller Installation and User Guide
Summary
This comprehensive installation manual details the setup and integration of the LightMaster Modular 4LS Controller. Designed for professionals, this system provides sophisticated, modular control solutions ideal for complex commercial and architectural lighting networks. The guide covers wiring specifications, detailed connection mapping (power, network, and load points), and operational guidelines, ensuring accurate and reliable implementation of your low-voltage lighting system.

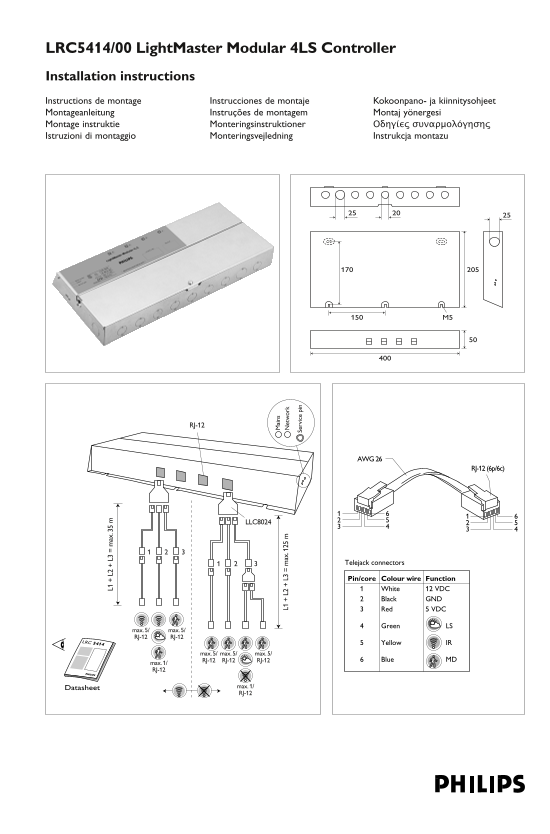

Page 1 Text Content
LRC5414/00 Light Master Modular 4LS Controller Installation instructions
. 1 tw
ic in
RJ-12
AWG 26
RJ-12 (6p/6c)
LLC8024
Telejack connectors
Pin/core Colour wire Function White 12 VDC Black GND Red 5 VDC
Green LS
max. 5/ max. 5/ RJ-12 RJ-12
LRC 5414
Yellow IR
max. 5/ max. 5/ max. 5/
RJ-12 RJ-12 RJ-12 Blue MD
max. 1/ RJ-12
Datasheet max. 1/ RJ-12
Page Summary Contents For Philips LRC5414 00 LightMaster Modular 4LS Controller Installation and User Guide
Manual Details
| Brand | Philips |
|---|---|
| Pages | 2 |
| File Size | 322.77 KB |
| Published | June 19, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What are the functions of the RJ-12 telejack connector pins?
Pin 1 (White): 12 VDC, Pin 2 (Black): GND, Pin 3 (Red): 5 VDC, Pin 4 (Green): LS, Pin 5 (Yellow): IR, Pin 6 (Blue): MD.
What is the maximum network cable distance?
L1 + L2 + L3 ≤ 125 meters for mains, max 35m for network.
What are the environmental ratings?
Operating temperature min. 5°C to max. 55°C, IP20 rating.
Which connectors are compatible?
Compatible components include Wieland, Camden, CTB7300/4F, CTB7300/5F.
How much does the controller weigh?
The controller weight is listed as 2 kg.
