The Philips HD7 is a comprehensive, advanced ultrasound system designed for diverse clinical settings and specialties. This documentation provides in-depth technical specifications and detailed transducer guides across applications like OB/GYN, cardiac, vascular, and musculoskeletal exams. Featuring intelligent Doppler technology and multiple modes (3D, Color Power Angio), the unit offers high efficiency and accurate diagnostics. It is essential for medical professionals and sonographers seeking a highly versatile, user-friendly platform that meets complex imaging requirements.

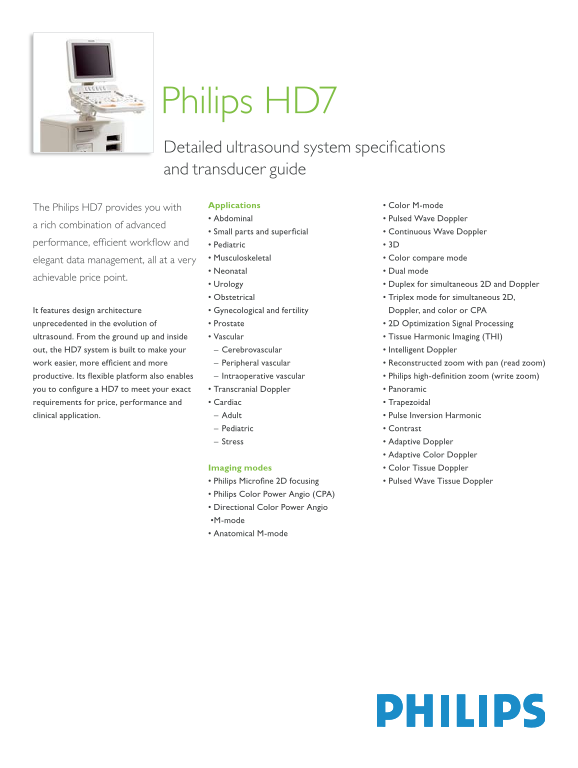

Page 1 Text Content
Philips HD7 Detailed ultrasound system specifications and transducer guide The Philips HD7 provides you with Applications • Color M-mode • Abdominal • Pulsed Wave Doppler
a rich combination of advanced
• Small parts and superficial • Continuous Wave Doppler
performance, efficient workflow and • Pediatric • 3D
elegant data management, all at a very • Musculoskeletal • Color compare mode • Neonatal • Dual mode
achievable price point.
• Urology • Duplex for simultaneous 2D and Doppler • Obstetrical • Triplex mode for simultaneous 2D,
It features design architecture • Gynecological and fertility Doppler, and color or CPA unprecedented in the evolution of • Prostate • 2D Optimization Signal Processing ultrasound. From the ground up and inside • Vascular • Tissue Harmonic Imaging (THI) out, the HD7 system is built to make your – Cerebrovascular • Intelligent Doppler work easier, more efficient and more – Peripheral vascular • Reconstructed zoom with pan (read zoom) productive. Its flexible platform also enables – Intraoperative vascular • Philips high-definition zoom (write zoom) you to configure a HD7 to meet your exact • Transcranial Doppler • Panoramic requirements for price, performance and • Cardiac • Trapezoidal clinical application. – Adult • Pulse Inversion Harmonic
– Pediatric • Contrast – Stress • Adaptive Doppler
• Adaptive Color Doppler
Imaging modes • Color Tissue Doppler • Philips Microfine 2D focusing • Pulsed Wave Tissue Doppler • Philips Color Power Angio (CPA) • Directional Color Power Angio •M-mode • Anatomical M-mode
Page Summary Contents For Philips HD7 User Guide
Manual Details
| Brand | Philips |
|---|---|
| Pages | 13 |
| File Size | 190.22 KB |
| Published | June 05, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What advanced imaging modes are available on the HD7 system?
It provides various advanced options including Color M-mode, 3D/4D, Pulsed Wave Doppler, Continuous Wave Doppler, and Philips Color Power Angio (CPA).
Is the ultrasound machine easy to use in an exam setting?
Yes, it has a high mobility cart with four-wheel swivel ability and features controls that can be raised, lowered, and rotated by more than 300°.
Does the system handle special power or electrical issues?
The unit is equipped with a built-in A/C line conditioner to provide isolation from voltage fluctuation and electrical noise interference.
What are the available applications for general abdominal scanning?
Transducers are available for various depths: Abdominal 0-4 cm, 5-10 cm, and >11 cm.
