Page 1 Text Content

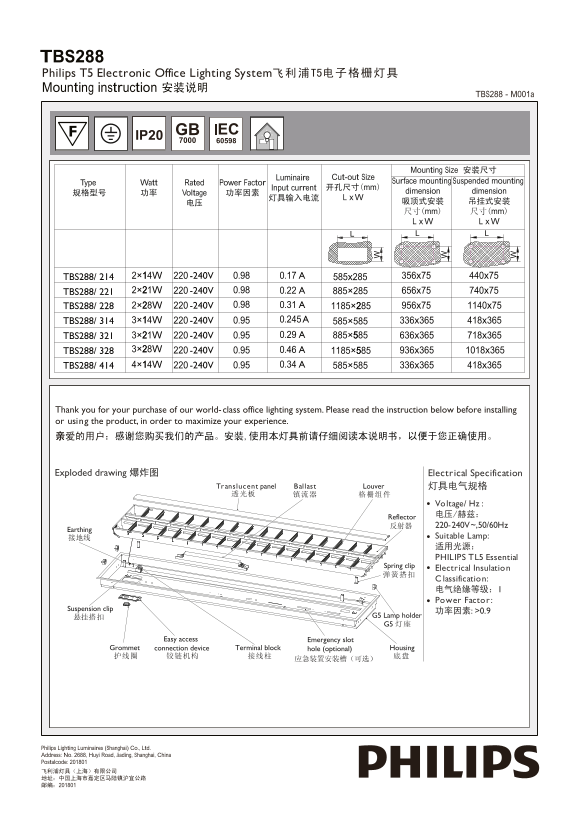

TBS288 Philips T5 Electronic Office Lighting System飞利浦T5电子格栅灯具
Mounting instruction 安装说明
TBS288 - M001a
Mounting Size 安装尺寸
Luminaire Cut-out Size
Type Watt Rated Power Factor Surface mounting Suspended mounting
Input current 开孔尺寸(mm)
规格型号 功率 Voltage 功率因素 dimension dimension
电压 吸顶式安装 吊挂式安装 尺寸(mm) 尺寸(mm) L x W L x W
TBS288/ 214 2×14W -240V 0.98 0.17 585x285 356x75 440x75
TBS288/ 221 2×21W -240V 0.98 0.22 885×285 656x75 740x75 TBS288/ 228 2×28W -240V 0.98 0.31 1185×285 956x75 1140x75
TBS288/ 314 3×14W -240V 0.95 0.245A 585×585 336x365 418x365 TBS288/ 321 3×21W -240V 0.95 0.29 885×585 636x365 718x365
TBS288/ 328 3×28W -240V 0.95 0.46 1185×585 936x365 1018x365
TBS288/ 414 4×14W -240V 0.95 0.34 585×585 336x365 418x365
Thank you for your purchase of our world- class office lighting system. Please read the instruction below before installing or using the product, in order to maximize your experience. 亲爱的用户：感谢您购买我们的产品。安装,使用本灯具前请仔细阅读本说明书，以便于您正确使用。
Exploded drawing 爆炸图 Electrical Specification
Translucent panel Bal last Louver 灯具电气规格 透光板 镇流器 格栅组件
Voltage/ Hz : 电压/赫兹：
Reflector
反射器 220-240V~,50/60Hz
Earthing
接地线 Suitable Lamp: 适用光源： PHILIPS TL5 Essential
Spring clip
Electrical Insulation
lassification: 电气绝缘等级：1 Power Factor
Suspension clip
悬挂搭扣 G5 Lamp holder G5 灯座
Easy access Emergency slot
Grommet connection device Terminal block hole (optional) Housing 护线圈 铰链机构 接线柱 底盘
Philips Lighting Luminaires (Shanghai) Co., Ltd. Address: No. 2688, Huyi Road, Jiading, Shanghai, China Postalcode: 201801 飞利浦灯具（上海）有限公司 地址：中国上海市嘉定区马陆镇沪宜公路 邮编：201801
