Philips Visio-TBS318 Mounting Instructions
Summary
This comprehensive guide supports the expert installation of modular TBS series linear luminaires. Designed as a crucial resource for qualified electricians and facility professionals, it details every step—from preliminary mounting via suspension hooks to final power connection wiring. The manual ensures proper component assembly, safe handling of electrical cables, and full compliance with international (IEE) and local national standards, guaranteeing reliable performance in commercial lighting applications.
Page 1 Text Content

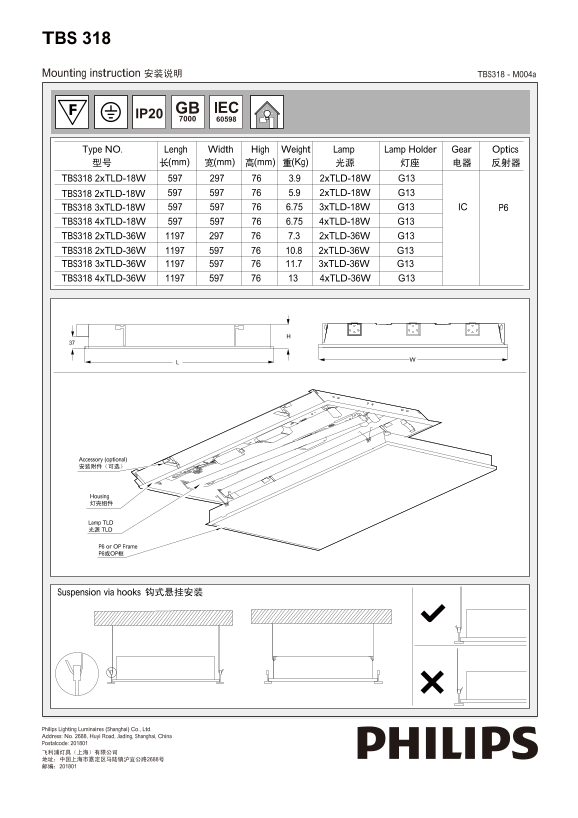

TBS 318 Mounting instruction 安装说明 TBS318 - M004a
Type NO. Lengh Width High Weight Lamp Lamp Holder Gear Optics
型号 长(mm) 宽(mm) 高(mm) 重(Kg) 光源 灯座 电器 反射器
TBS318 2x TLD-18W 597 297 76 3.9 2x TLD-18W G13
TBS318 2x TLD-18W 597 597 76 5.9 2x TLD-18W G13 TBS318 3x TLD-18W 597 597 76 6.75 3x TLD-18W G13 IC P6
TBS318 4x TLD-18W 597 597 76 6.75 4x TLD-18W G13 TBS318 2x TLD-36W 1197 297 76 7.3 2x TLD-36W G13 TBS318 2x TLD-36W 1197 597 76 10.8 2x TLD-36W G13 TBS318 3x TLD-36W 1197 597 76 11.7 3x TLD-36W G13 TBS318 4x TLD-36W 1197 597 76 13 4x TLD-36W G13
Accessory (optional) 安装附件（可选）
Housing 灯壳组件
Lamp TLD 光源 TLD
P6 or OP Frame P6或OP框
Suspension via hooks 钩式悬挂安装
Philips Lighting Luminaires (Shanghai) Co., Ltd. Address: No. 2688, Huyi Road, Jiading, Shanghai, China Postalcode: 201801 飞利浦灯具（上海）有限公司 地址：中国上海市嘉定区马陆镇沪宜公路2688号 邮编：201801
