Summary
These Schottky Barrier Diodes are high-performance semiconductor components available in a compact SOT-323 SMD package, designed for ultra high-speed switching and robust circuit protection. Suitable for advanced electronics and power management applications like voltage clamping and blocking circuits. The datasheet provides comprehensive technical details, including absolute maximum ratings, electrical vs. thermal graphs, and detailed geometric specifications necessary for reliable design integration by electrical engineers and component designers.
Page 1 Text Content
查询1PS70SB10供应商
DISCRETE SEMICONDUCTORS
DATA SHEET
ok, halfpage

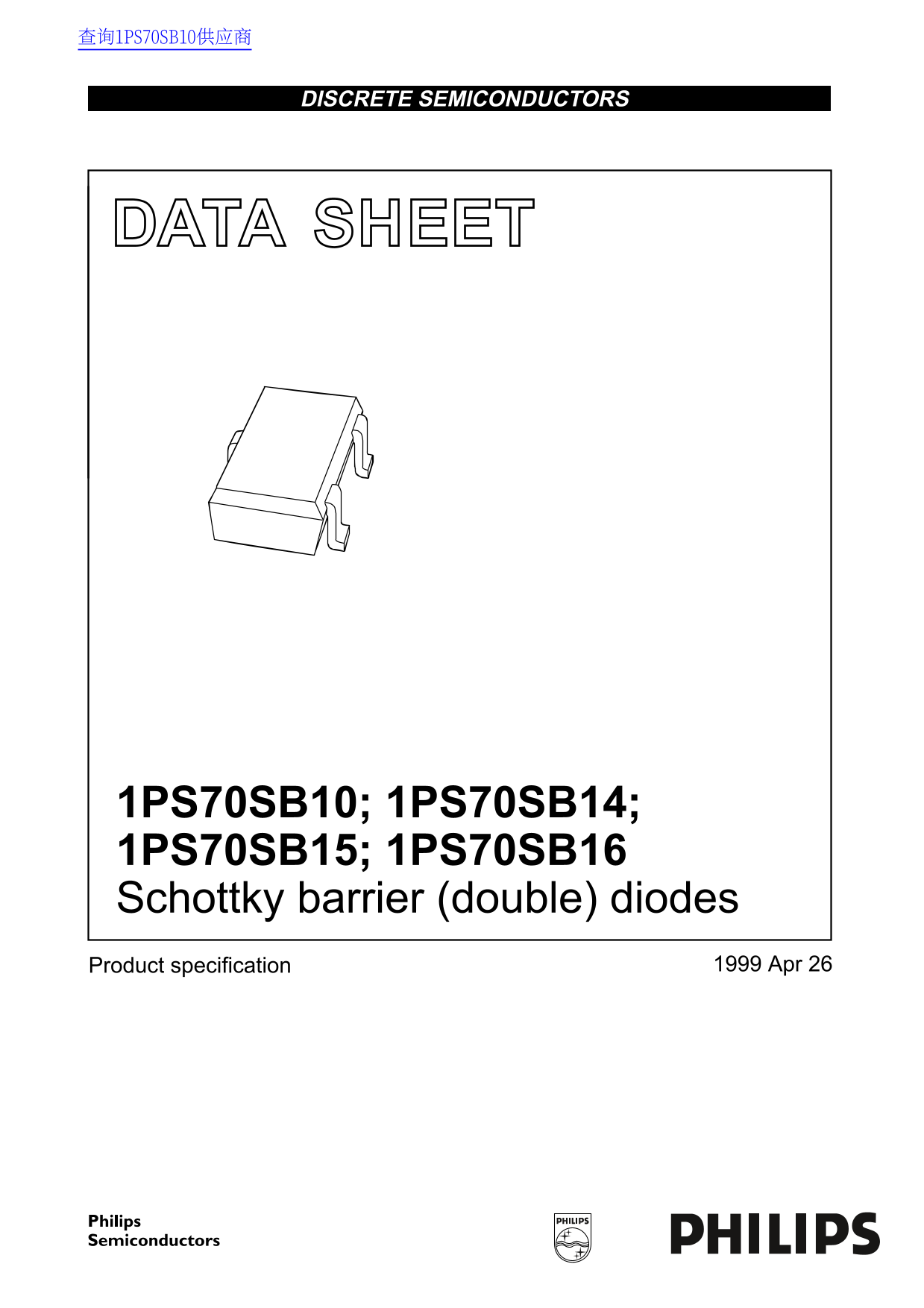

1PS70SB10; 1PS70SB14; 1PS70SB15; 1PS70SB16 Schottky barrier (double) diodes
Product specification Apr
