Summary
The 1PS88SB48 is a dual high-speed Schottky barrier diode array from Philips in a small SC-88 SMD package. Featuring ultra-fast switching, low forward voltage (380mV at 1mA), 5pF capacitance, and guard ring protection, each diode handles 120mA continuous forward current with 40V reverse voltage. Designed for high-speed switching, circuit protection, and voltage clamping, it targets circuit designers in telecommunications, consumer electronics, and computing who need reliable fast-acting diode solutions in miniaturized surface-mount designs.

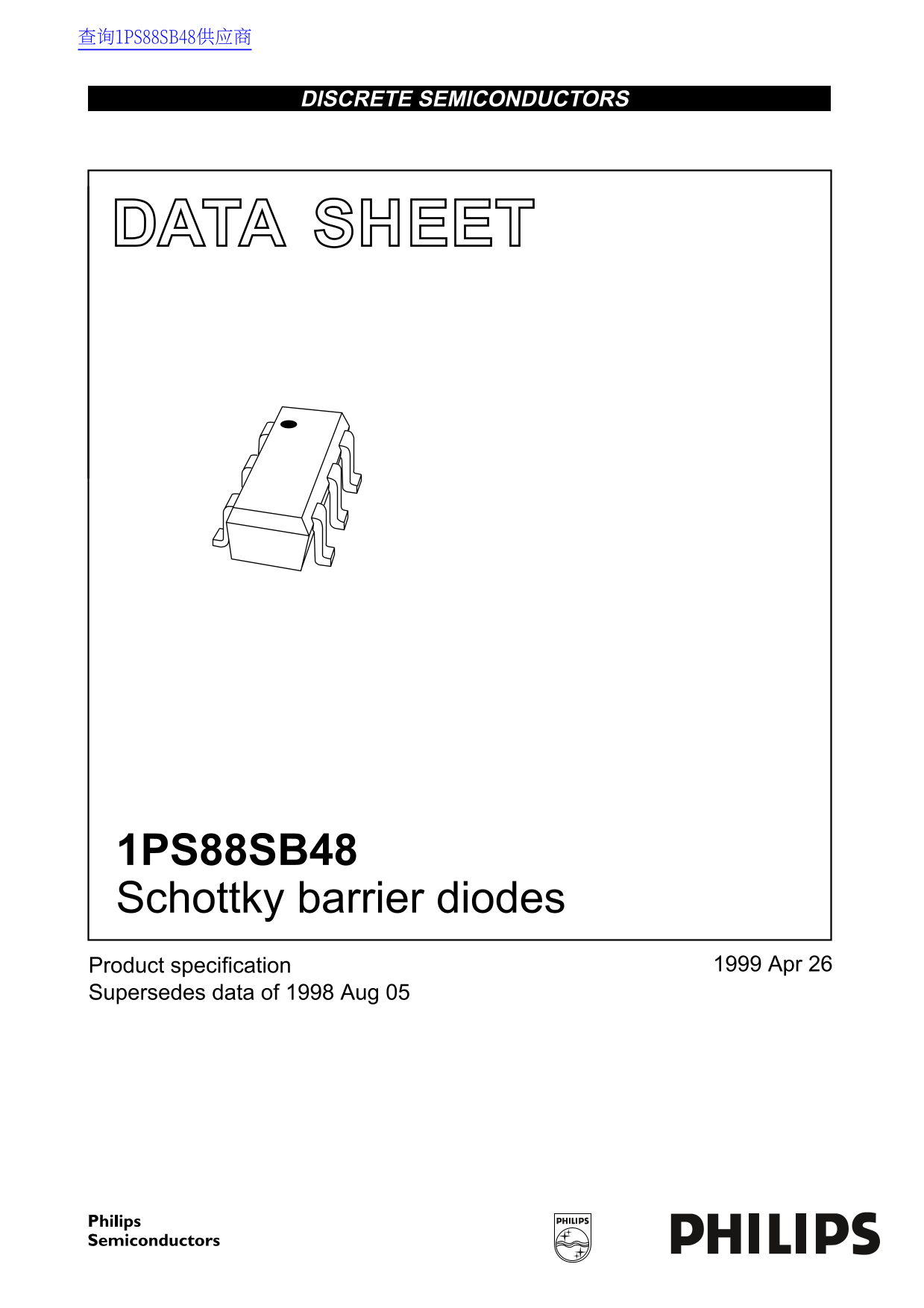

Page 1 Text Content
查询1PS88SB48供应商
DISCRETE SEMICONDUCTORS
DATA SHEET
ok, halfpage
MBD128
1PS88SB48 Schottky barrier diodes
Product specification Apr
Supersedes data of 1998 Aug 05
Page Summary Contents For PHILIPS Schottky Barrier Diodes Data Sheet manual instructions
Manual Details
| Brand | Philips |
|---|---|
| Pages | 8 |
| File Size | 53.24 KB |
| Published | July 04, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What is the max continuous reverse voltage?
The maximum continuous reverse voltage is 40 V per diode.
What package does the 1PS88SB48 use?
It is encapsulated in the small SMD SC-88 (SOT363) plastic package.
Can this diode be used in life support systems?
No, it is not designed for use in life support applications.
What is the max forward current rating?
The continuous forward current is 120 mA per diode.
