Philips 1PS76SB10 Schottky Barrier Diode Data Sheet/Manual
Summary
Philips Semiconductors 1PS76SB10 planar Schottky barrier diode datasheet (October 1996) documenting this ultra high-speed switching diode in a SOD323 miniature SMD plastic package. Features low forward voltage (240mV at 0.1mA, 400mV at 10mA, 800mV at 100mA), guard ring protection, 30V continuous reverse voltage rating, 200mA continuous forward current, and junction capacitance of 10pF at 1MHz/1V reverse. Applications include voltage clamping, protection circuits, and blocking diodes. Includes co

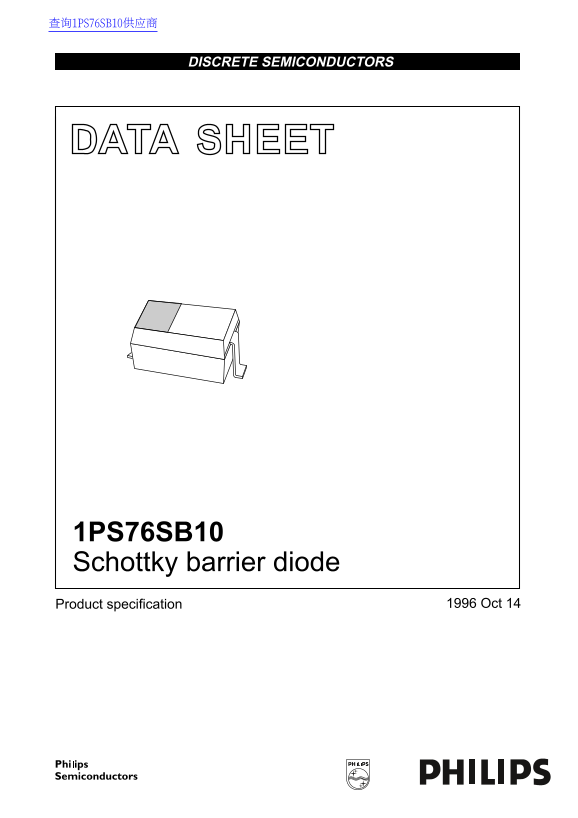

Page 1 Text Content
查询1PS76SB10供应商
DISCRETE SEMICONDUCTORS
DATA SHEET
k, halfpage
1PS76SB10 Schottky barrier diode
Product specification Oct
Page Summary Contents For Philips 1PS76SB10 Schottky Barrier Diode Data Sheet/Manual
Manual Details
| Brand | Philips |
|---|---|
| Pages | 5 |
| File Size | 30.79 KB |
| Published | June 18, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
Is this diode suitable for life support applications?
No, these products are not designed for use in life support appliances, devices, or systems.
What is the maximum operating ambient temperature range?
The operational ambient temperature range is stated as -65°C to +125°C.
What package type is used for this Schottky barrier diode?
It is housed in a SOD323 very small plastic SMD package.
