Philips PMEG2010EA Low VF (MEGA) Schottky Barrier Diode Data Sheet User Manual
Summary
The PMEG2010EA is a High Efficiency Schottky barrier diode designed for demanding power applications requiring ultra high-speed switching and voltage clamping. Encapsulated in a compact SMD package, this component offers excellent stress protection and low forward voltage characteristics. This datasheet provides comprehensive specifications, including electrical ratings (forward/reverse current), thermal performance data, and geometric details necessary for integrating the device into critical protection circuits.
Page 1 Text Content
查询PMEG2010EA供应商
DISCRETE SEMICONDUCTORS
DATA SHEET

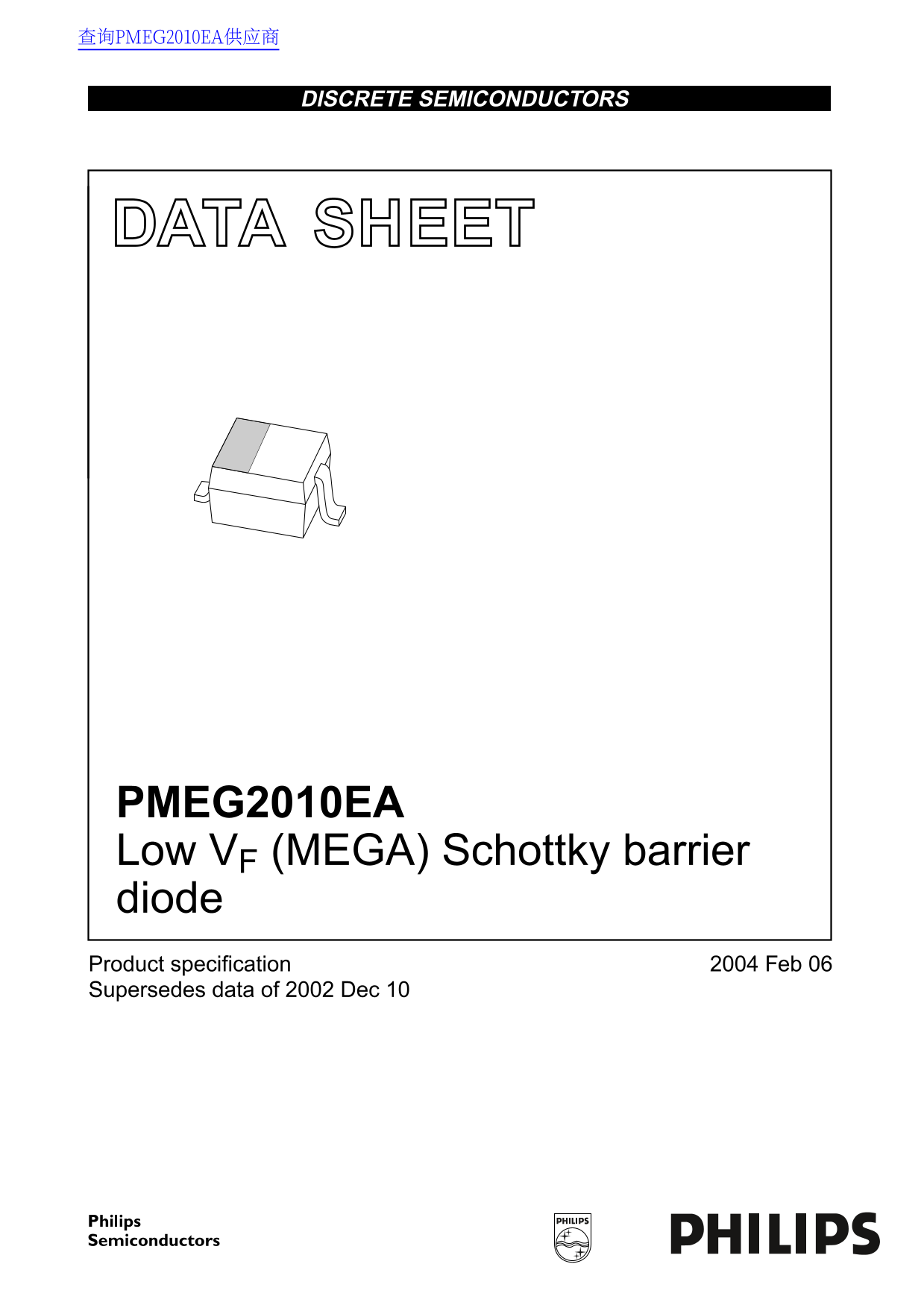

PMEG2010EA Low VF (MEGA) Schottky barrier diode Product specification Feb Supersedes data of 2002 Dec
Page Summary Contents For Philips PMEG2010EA Low VF (MEGA) Schottky Barrier Diode Data Sheet User Manual
Manual Details
| Brand | Philips |
|---|---|
| Pages | 7 |
| File Size | 47.61 KB |
| Published | June 22, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What is the physical package for this diode?
It comes in a SOD323 (SC-76) very small SMD plastic package.
What are the electrical ratings for peak forward current and reverse voltage?
The non-repetitive peak forward current (I F SM) must be at least 5A, and the continuous reverse voltage (R V) limit is 20V.
How does external temperature affect its performance?
The maximum junction operating temperature (j T) is +125°C, while the ambient temperature range is -65 to +125°C (°amb).
What is the primary function of this Schottky diode?
It features ultra high-speed switching and can be used in applications like voltage clamping and protection circuits.
