PMEG2020EH and PMEG2020EJ are 20V, 2A very low V_F Schottky barrier rectifiers designed for high-efficiency applications. This datasheet covers technical specifications, thermal characteristics, and pinning information for these compact SMD single diodes.

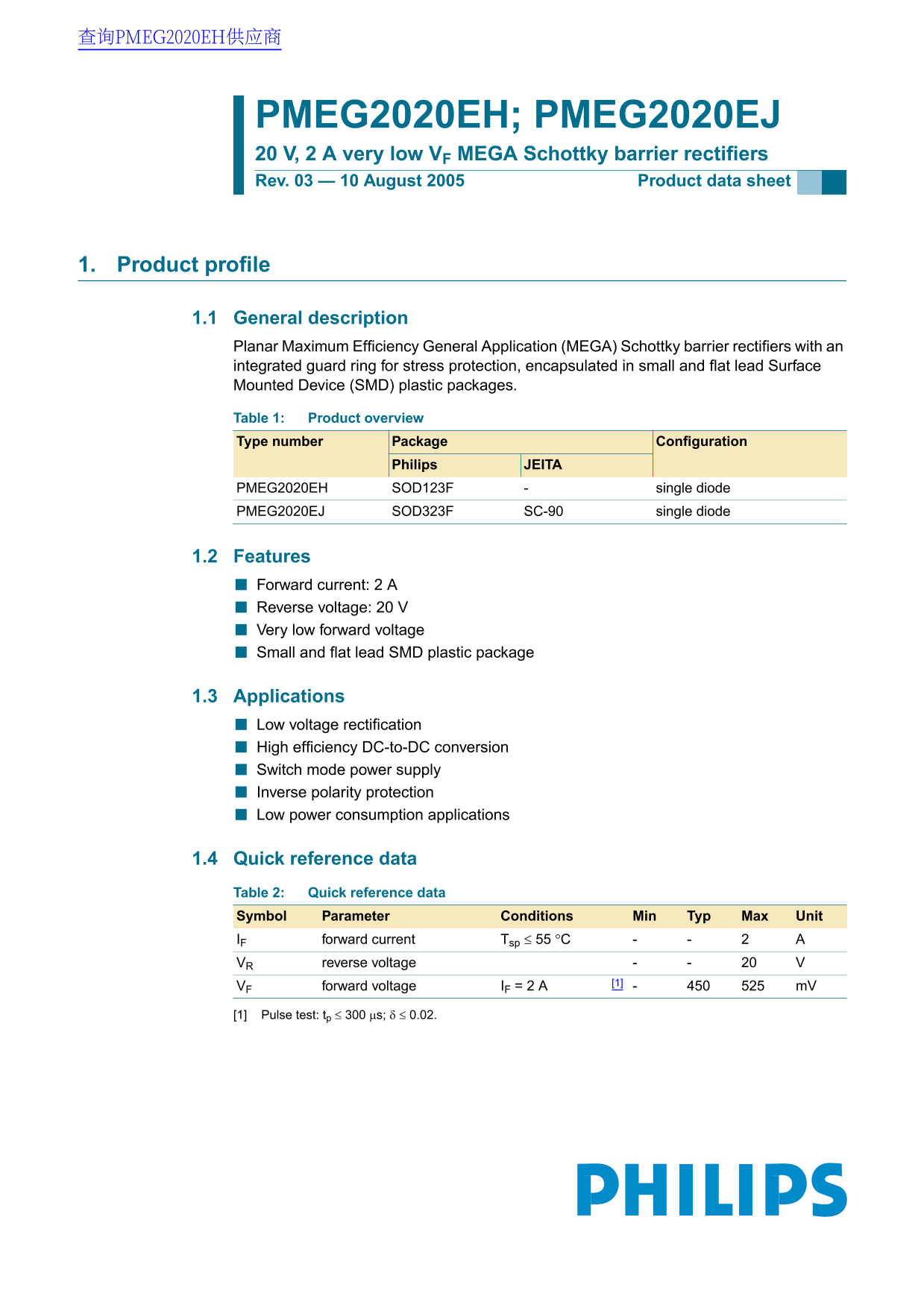

Page 1 Text Content
查询PMEG2020EH供应商
PMEG2020EH; PMEG2020EJ 20 V, 2 A very low VF MEGA Schottky barrier rectifiers Rev. 03 — 10 August 2005 Product data sheet
1. Product profile
1.1 General description Planar Maximum Efficiency General Application (MEGA) Schottky barrier rectifiers with an integrated guard ring for stress protection, encapsulated in small and flat lead Surface Mounted Device (SMD) plastic packages.
Table 1: Product overview Type number Package Configuration
Philips JEITA
PMEG2020EH SOD123F single diode PMEG2020EJ SOD323F SC-90 single diode
1.2 Features Forward current: 2 Reverse voltage: 20 Very low forward voltage Small and flat lead SMD plastic package
1.3 Applications Low voltage rectification High efficiency DC-to-DC conversion Switch mode power supply Inverse polarity protection Low power consumption applications
1.4 Quick reference data Table 2: Quick reference data Symbol Parameter Conditions Min Typ Max Unit
IF forward current Tsp °C VR reverse voltage
VF forward voltage IF m V
[1] Pulse test: tp µs; 0.02.
Page Summary Contents For PHILIPS PMEG2020EH; PMEG2020EJ 20V, 2A Very Low VF Mega Schottky Barrier Rectifiers Data Manual
Manual Details
| Brand | Philips |
|---|---|
| Pages | 10 |
| File Size | 45.47 KB |
| Published | June 22, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What are the key differences between PMEG2020EH and PMEG2020EJ?
They differ in package type: PMEG2020EH uses SOD123F, while PMEG2020EJ uses SOD323F (SC-90).
What is the maximum forward current rating?
The maximum forward current is 2 A when the solder point temperature is ≤55 °C.
What are the typical applications for these diodes?
They are for low voltage rectification, high efficiency DC-to-DC conversion, switch mode power supplies, and inverse polarity protection.
How can I identify the cathode on the component?
The marking bar on the component indicates the cathode.
