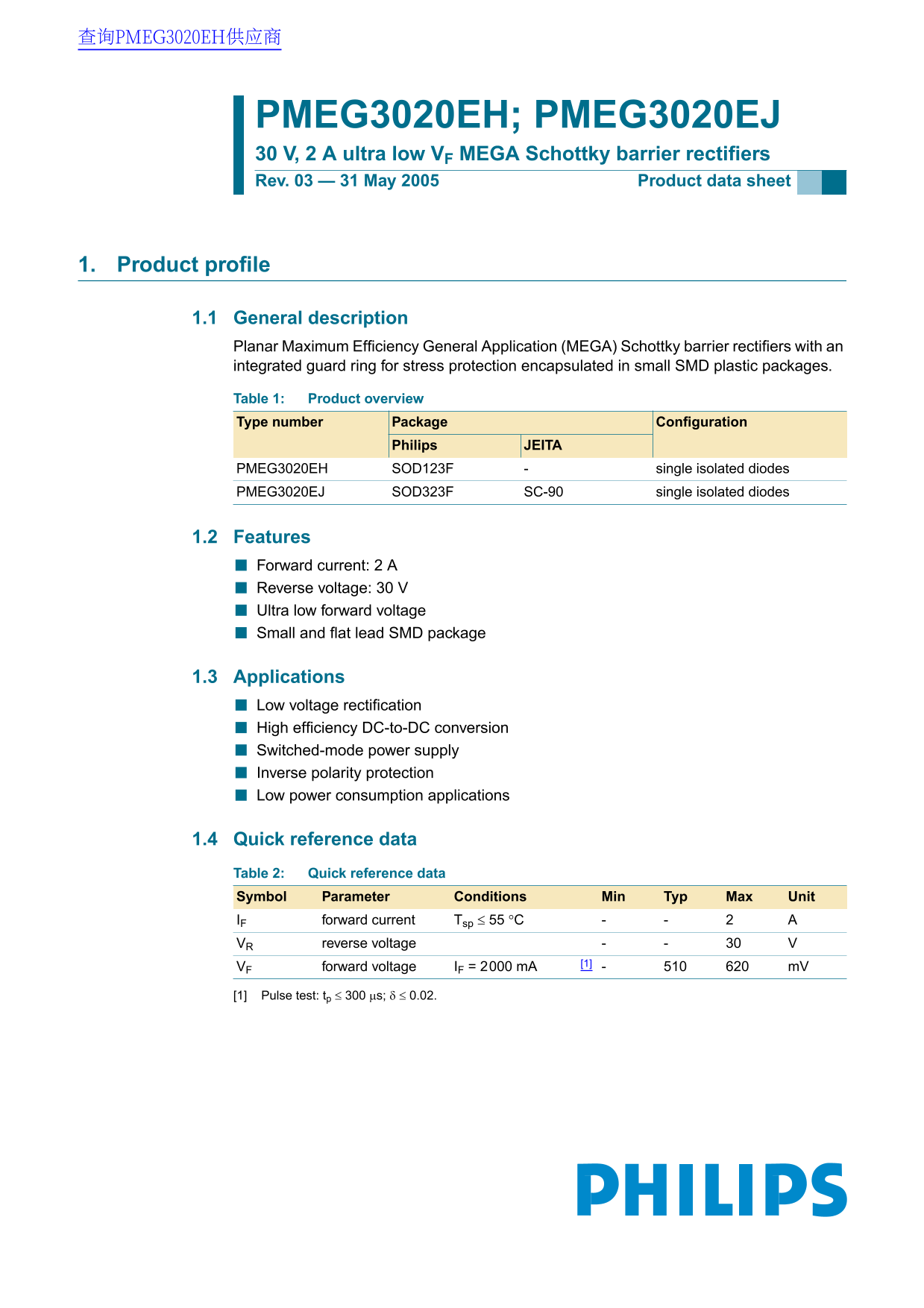

PMEG3020EH; PMEG3020EJ V, 2 A ultra low VF MEGA Schottky barrier rectifiers Rev. 03 — 31 May 2005 Product data sheet
1. Product profile
1.1 General description Planar Maximum Efficiency General Application (MEGA) Schottky barrier rectifiers with an integrated guard ring for stress protection encapsulated in small SMD plastic packages.
Table 1: Product overview Type number Package Configuration
Philips JEITA
PMEG3020EH SOD123F single isolated diodes PMEG3020EJ SOD323F SC-90 single isolated diodes
1.2 Features Forward current: 2 A Reverse voltage: 30 V Ultra low forward voltage Small and flat lead SMD package
1.3 Applications Low voltage rectification High efficiency DC-to-DC conversion Switched-mode power supply Inverse polarity protection Low power consumption applications
1.4 Quick reference data Table 2: Quick reference data Symbol Parameter Conditions Min Typ Max Unit
IF forward current Tsp ≤ 55 °C VR reverse voltage
VF forward voltage IF m A m V
[1] Pulse test: tp µs; 0.02.
