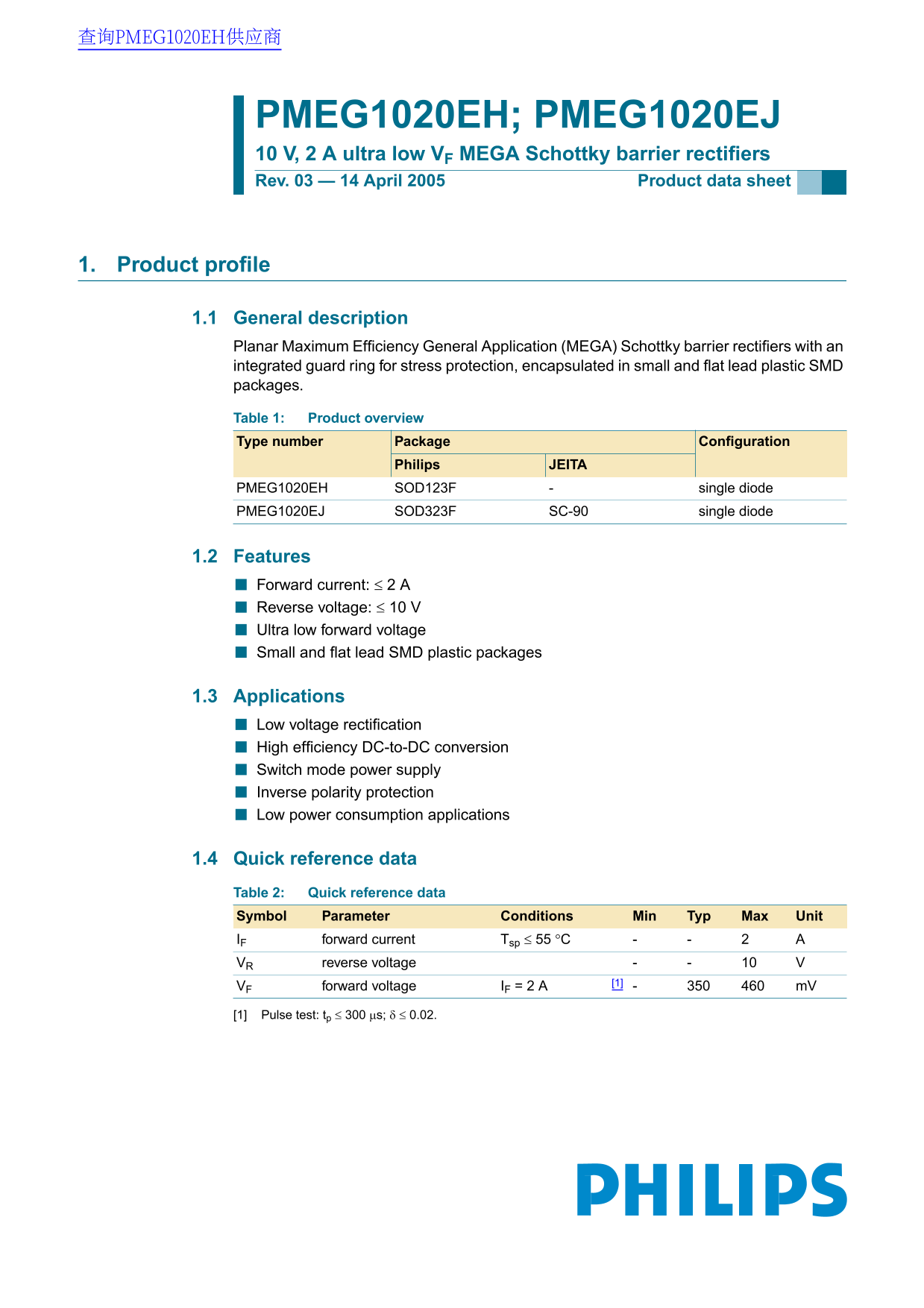

PMEG1020EH; PMEG1020EJ 10 V, 2 A ultra low VF MEGA Schottky barrier rectifiers Rev. 03 — 14 April 2005 Product data sheet
1. Product profile
1.1 General description Planar Maximum Efficiency General Application (MEGA) Schottky barrier rectifiers with an integrated guard ring for stress protection, encapsulated in small and flat lead plastic SMD packages.
Table 1: Product overview Type number Package Configuration
Philips JEITA
PMEG1020EH SOD123F single diode PMEG1020EJ SOD323F SC-90 single diode
1.2 Features Forward current: Reverse voltage: Ultra low forward voltage Small and flat lead SMD plastic packages
1.3 Applications Low voltage rectification High efficiency DC-to-DC conversion Switch mode power supply Inverse polarity protection Low power consumption applications
1.4 Quick reference data Table 2: Quick reference data Symbol Parameter Conditions Min Typ Max Unit
IF forward current Tsp °C VR reverse voltage
VF forward voltage IF m V
[1] Pulse test: tp µs; 0.02.
