The PMEG2015 series are highly efficient, low-voltage MEGA Schottky barrier rectifiers designed for advanced power electronics applications. Featuring small, flat SMD packages (SOD123F/SOD323F), they excel in low voltage rectification, high-efficiency DC-to-DC conversion, and switch mode power supplies. This comprehensive technical manual provides critical data on product performance, thermal characteristics, absolute limiting values, and detailed electrical operation curves. It is essential reading for electrical engineers and designers sourcing components for reliable, compact DC power solutions.
Page 1 Text Content
查询PMEG2015EH供应商

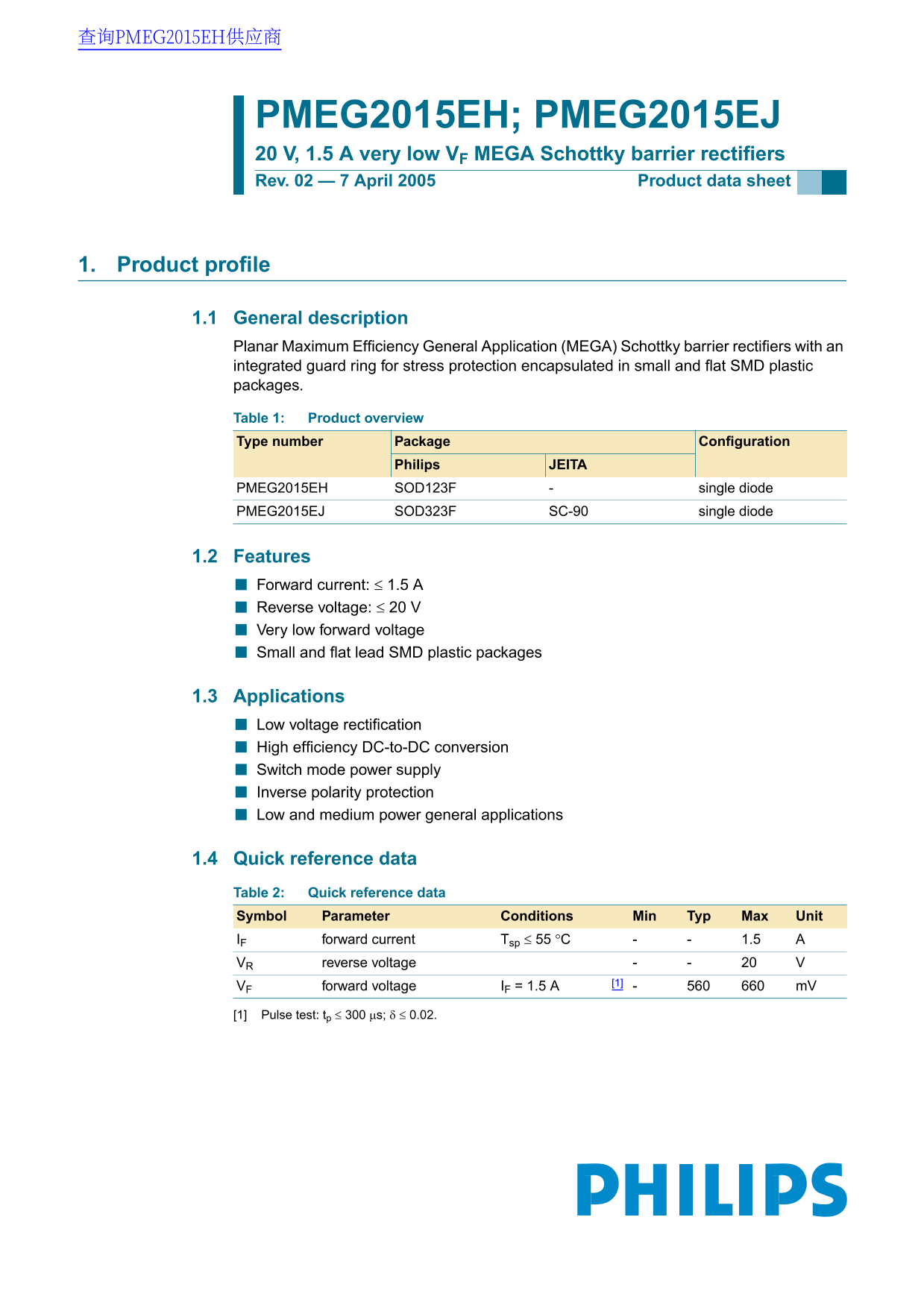

PMEG2015EH; PMEG2015EJ 20 V, 1.5 A very low VF MEGA Schottky barrier rectifiers Rev. 02 — 7 April 2005 Product data sheet
1. Product profile
1.1 General description Planar Maximum Efficiency General Application (MEGA) Schottky barrier rectifiers with an integrated guard ring for stress protection encapsulated in small and flat SMD plastic packages.
Table 1: Product overview Type number Package Configuration
Philips JEITA
PMEG2015EH SOD123F single diode PMEG2015EJ SOD323F SC-90 single diode
1.2 Features Forward current: 1.5 Reverse voltage: Very low forward voltage Small and flat lead SMD plastic packages
1.3 Applications Low voltage rectification High efficiency DC-to-DC conversion Switch mode power supply Inverse polarity protection Low and medium power general applications
1.4 Quick reference data Table 2: Quick reference data Symbol Parameter Conditions Min Typ Max Unit
IF forward current Tsp °C 1.5 VR reverse voltage
VF forward voltage IF 1.5 m V
[1] Pulse test: tp µs; 0.02.
Page Summary Contents For PHILIPS PMEG2015EH; PMEG2015EJ Data Manual 20 V, 1.5 A Very Low VF MEGA Schottky Barrier Rectifiers
Manual Details
| Brand | Philips |
|---|---|
| Pages | 9 |
| File Size | 43.97 KB |
| Published | July 04, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What is the maximum forward current of PMEG2015EH?
The maximum forward current is 1.5 A at T ≤ 55 °C.
What package does PMEG2015EJ use?
PMEG2015EJ is encapsulated in SOD323F (SC-90) small flat SMD plastic package.
What are the typical applications of these rectifiers?
They are used for low voltage rectification, DC-to-DC conversion, switch mode power supply, inverse polarity protection.
How to identify the cathode pin of PMEG2015EH?
The marking bar on the device indicates the cathode pin.
