PHILIPS PMEG2020AEA 20 V, 2 A Very Low VF MEGA Schottky Barrier Rectifier in SOD323 (SC-76) Package
Summary
The PMEG2020AEA is a high-efficiency MEGA Schottky barrier rectifier designed for critical low voltage applications. Its ultra-low forward and reverse voltages ensure reliable performance in compact, power-sensitive circuits. Ideal for industries requiring solutions like DC/DC conversion, switch mode power supplies, or inverse polarity protection. This manual provides comprehensive technical specifications, including current-voltage graphs, thermal properties, dimensions (SOD323 package), and detailed handling guidelines necessary for PCB design and integration by electrical engineers.
Page 1 Text Content
查询PMEG2020AEA供应商
DISCRETE SEMICONDUCTORS
DATA SHEET
handbook, halfpage

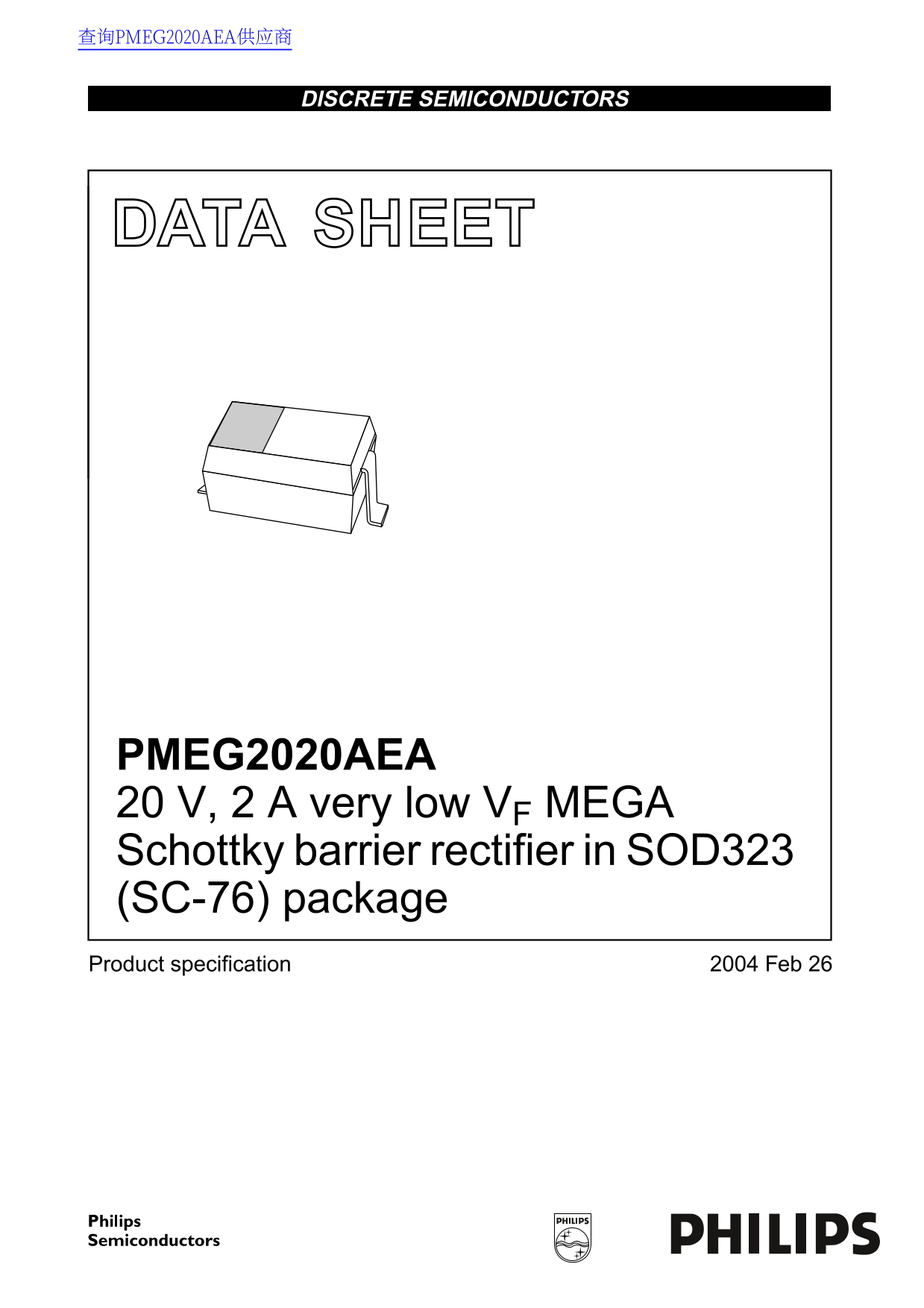

PMEG2020AEA 20 V, 2 A very low VF MEGA Schottky barrier rectifier in SOD323 (SC-76) package Product specification Feb
Page Summary Contents For PHILIPS PMEG2020AEA 20 V, 2 A Very Low VF MEGA Schottky Barrier Rectifier in SOD323 (SC-76) Package
Manual Details
| Brand | Philips |
|---|---|
| Pages | 7 |
| File Size | 48.68 KB |
| Published | July 06, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What are the main applications for this Schottky rectifier?
It can be used for low voltage rectification, high efficiency DC/DC conversion, switch mode power supplies, and inverse polarity protection.
What is the maximum rated reverse voltage of the device?
The specified continuous reverse voltage (R) rating is up to -20 V.
What specific safety consideration should I note when using Schottky diodes?
You must consider thermal runaway, as reverse power losses (P) can become a significant part of total power losses.
In what physical package style and size is the PMEG2020AEA supplied?
It comes in a small surface-mounted SOD323 (SC-76) plastic package with two leads.
