PHILIPS PMEG6010AED Low VF MEGA Schottky Barrier Diode Data Manual
Summary
This technical datasheet provides comprehensive specifications for the PMEG6010AEDF Schottky barrier diode, a robust surface-mount semiconductor component. The manual details key electrical parameters, thermal limits, and handling guidelines necessary for optimal integration into electronic designs. Ideal for engineers and designers building low-power switched-mode power supplies, rectification circuits, or polarity protection systems that require high surge current absorption capabilities in compact applications.
Page 1 Text Content
查询PMEG6010AED供应商
DISCRETE SEMICONDUCTORS
DATA SHEET
PMEG6010AED Low VF (MEGA) Schottky barrier diode Product specification Jun
Page Summary Contents For PHILIPS PMEG6010AED Low VF MEGA Schottky Barrier Diode Data Manual
Page 1

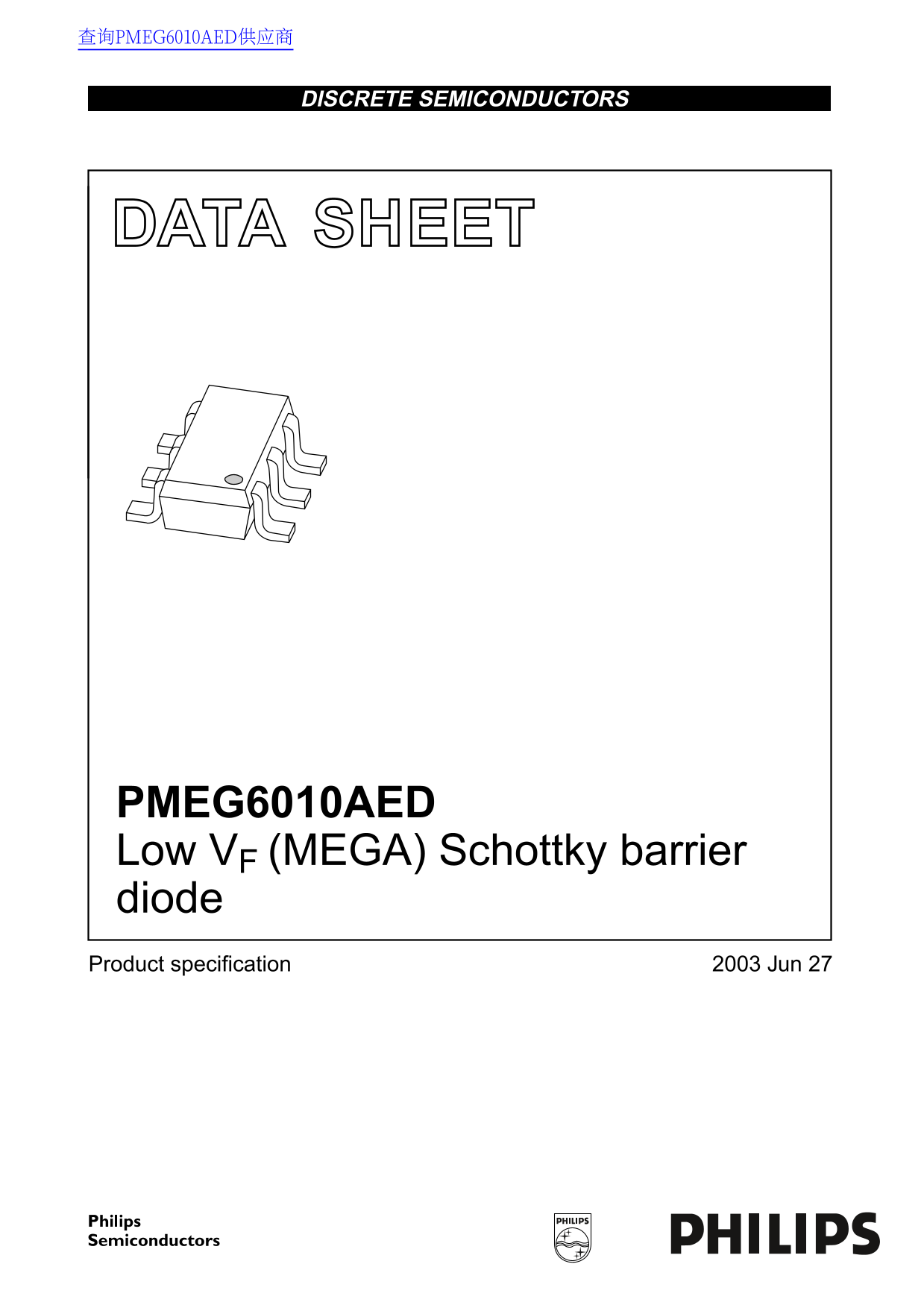

查询PMEG6010AED供应商 DISCRETE SEMICONDUCTORS DATA SHEET PMEG6010AED Low VF (MEGA) Schottky barrier diode Product specification Jun
Page 2
Philips Semiconductors Product specification Low VF (MEGA) Schottky barrier diode PMEG6010AED FEATURES PINNING Low switching losses PIN DESCRIPTION Very high surge current absorption capability cathod...
Page 3
Philips Semiconductors Product specification Low VF (MEGA) Schottky barrier diode PMEG6010AED ELECTRICAL CHARACTERISTICS Tamb °C; unless otherwise specified. SYMBOL PARAMETER CONDITIONS MAX. UNIT VF c...
Page 4
Philips Semiconductors Product specification Low VF (MEGA) Schottky barrier diode PMEG6010AED GRAPHICAL DATA MHC635 MHC636 handbook, halfpage handbook, halfpage IF (1) VF (V) VR (V) (1) Tamb °C. (3) T...
Page 5
Philips Semiconductors Product specification Low VF (MEGA) Schottky barrier diode PMEG6010AED PACKAGE OUTLINE Plastic surface mounted package; 6 leads SOT457 pin 1 index detail X scale DIMENSIONS (mm ...
Page 6
Philips Semiconductors Product specification Low VF (MEGA) Schottky barrier diode PMEG6010AED DATA SHEET STATUS DATA SHEET PRODUCT LEVEL DEFINITION STATUS(1) STATUS(2)(3) Objective data Development Th...
Page 7
Philips Semiconductors Product specification Low VF (MEGA) Schottky barrier diode PMEG6010AED NOTES
Page 8
Philips Semiconductors – a worldwide company Contact information For additional information please visit http://www.semiconductors.philips.com. Fax: +31 For sales offices addresses send e-mail to: sal...
