PHILIPS PMEG2010AEB Ultra Low VF 20V, 1A MEGA Schottky Barrier Rectifier - SOD523 Package User Manual
Summary
The PMEG2010AEB is an ultra low voltage, high-efficiency Schottky barrier rectifier designed for critical power applications such as DC/DC conversion and inverse-polarity protection. This datasheet provides comprehensive technical specifications covering operating limits, thermal characteristics, and electrical performance in a compact SOD523 SMD package. Use this resource to determine the optimal application details for low voltage rectification circuits requiring reliable, low-power switching solutions.
Page 1 Text Content
查询PMEG2010AEB供应商
DISCRETE SEMICONDUCTORS
DATA SHEET
PMEG2010AEB V, 1 A ultra low VF MEGA Schottky barrier rectifier in SOD523 package Product specification Dec
Page Summary Contents For PHILIPS PMEG2010AEB Ultra Low VF 20V, 1A MEGA Schottky Barrier Rectifier - SOD523 Package User Manual
Page 1

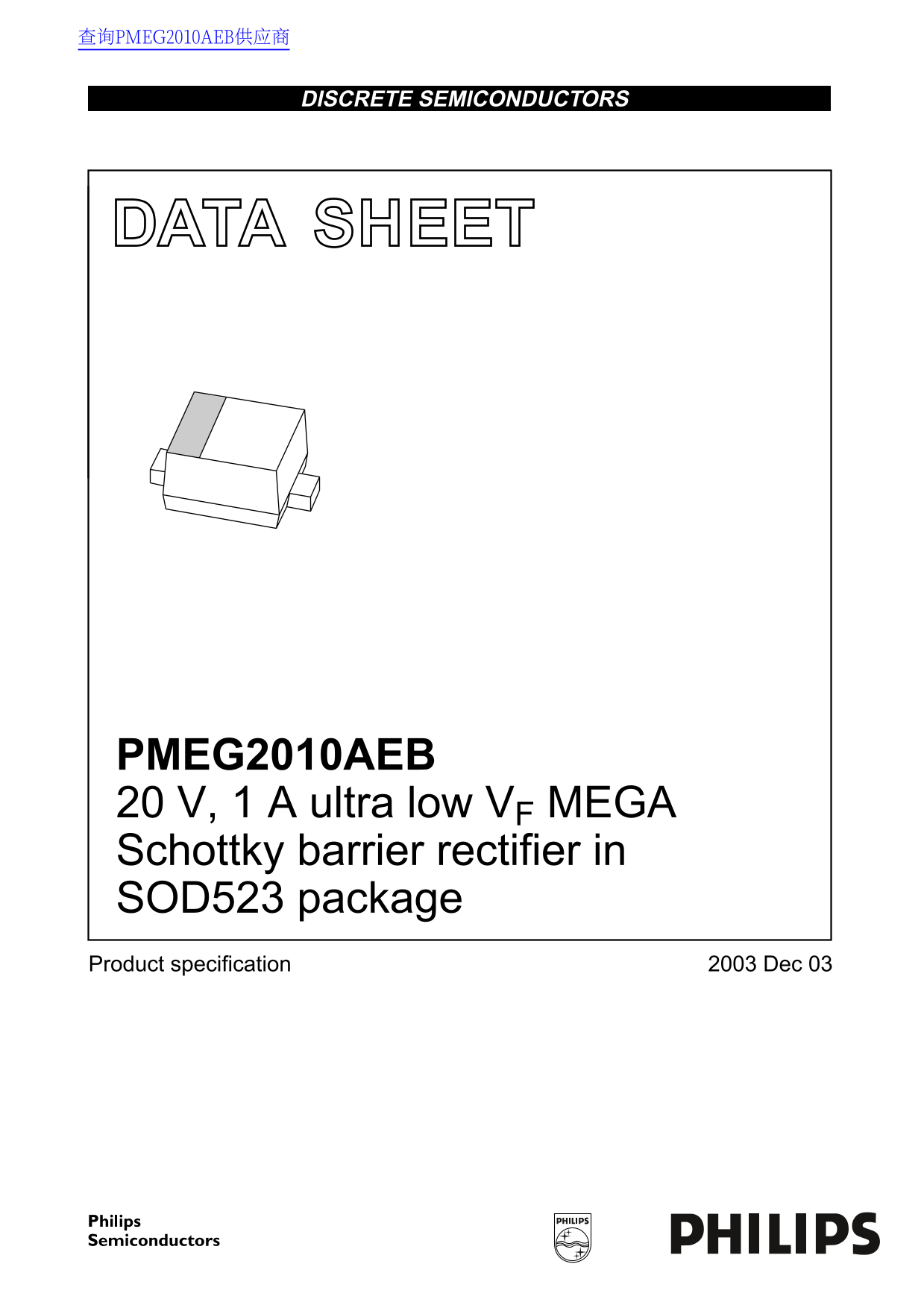

查询PMEG2010AEB供应商 DISCRETE SEMICONDUCTORS DATA SHEET PMEG2010AEB V, 1 A ultra low VF MEGA Schottky barrier rectifier in SOD523 package Product specification Dec
Page 2
Philips Semiconductors Product specification V, 1 A ultra low VF MEGA Schottky PMEG2010AEB barrier rectifier in SOD523 package FEATURES QUICK REFERENCE DATA Forward current: 1.0 SYMBOL PARAMETER MAX. ...
Page 3
Philips Semiconductors Product specification V, 1 A ultra low VF MEGA Schottky PMEG2010AEB barrier rectifier in SOD523 package LIMITING VALUES In accordance with the Absolute Maximum Rating System (IE...
Page 4
Philips Semiconductors Product specification V, 1 A ultra low VF MEGA Schottky PMEG2010AEB barrier rectifier in SOD523 package CHARACTERISTICS Tamb °C unless otherwise specified. SYMBOL PARAMETER COND...
Page 5
Philips Semiconductors Product specification V, 1 A ultra low VF MEGA Schottky PMEG2010AEB barrier rectifier in SOD523 package GRAPHICAL DATA com001 MLE228 handbook, halfpage IR VR (V) VF (V) (1) Tamb...
Page 6
Philips Semiconductors Product specification V, 1 A ultra low VF MEGA Schottky PMEG2010AEB barrier rectifier in SOD523 package PACKAGE OUTLINE Plastic surface mounted package; 2 leads SOD523V 0.5 1 mm...
Page 7
Philips Semiconductors Product specification V, 1 A ultra low VF MEGA Schottky PMEG2010AEB barrier rectifier in SOD523 package DATA SHEET STATUS DATA SHEET PRODUCT LEVEL DEFINITION STATUS(1) STATUS(2)...
Page 8
Philips Semiconductors – a worldwide company Contact information For additional information please visit http://www.semiconductors.philips.com. Fax: +31 For sales offices addresses send e-mail to: sal...
