This technical datasheet provides comprehensive details for the PMEG2005AEL, a high-efficiency Schottky barrier rectifier diode designed for low-voltage and high-speed power conversion. The component features an integrated guard ring and ultra small leadless SOD882 package, making it ideal for compact, demanding electronics applications. This manual includes precise electrical characteristics, thermal performance curves, detailed application guidelines, and ordering information necessary for professional engineers selecting reliable components for DC-to-DC converters and protection circuits.
Page 1 Text Content
查询PMEG2005AEL供应商

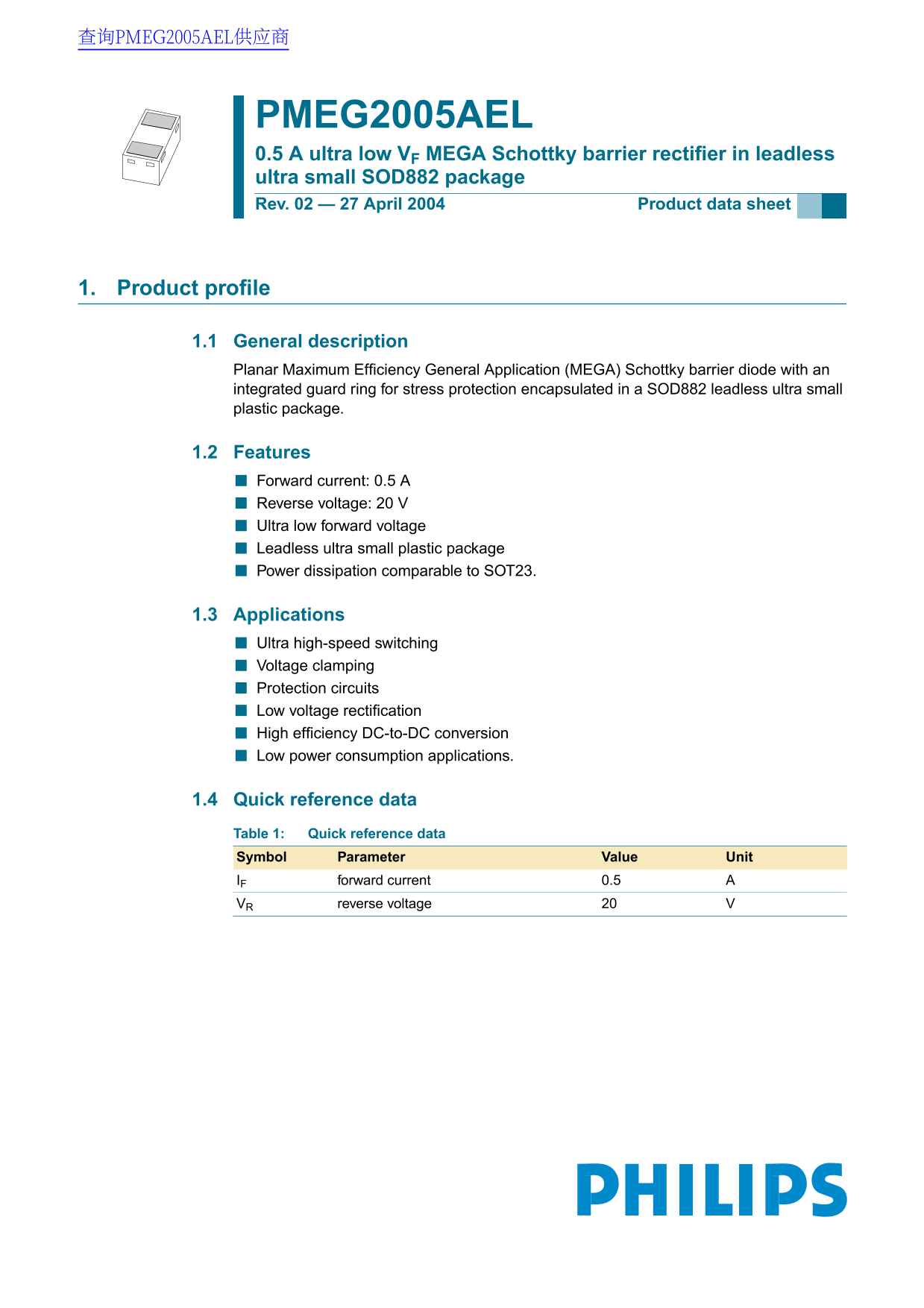

PMEG2005AEL 0.5 A ultra low VF MEGA Schottky barrier rectifier in leadless ultra small SOD882 package Rev. 02 — 27 April 2004 Product data sheet
1. Product profile
1.1 General description Planar Maximum Efficiency General Application (MEGA) Schottky barrier diode with an integrated guard ring for stress protection encapsulated in SOD882 leadless ultra small plastic package.
1.2 Features Forward current: 0.5 Reverse voltage: 20 Ultra low forward voltage Leadless ultra small plastic package Power dissipation comparable to SOT23.
1.3 Applications Ultra high-speed switching Voltage clamping Protection circuits Low voltage rectification High efficiency DC-to-DC conversion Low power consumption applications.
1.4 Quick reference data Table 1: Quick reference data Symbol Parameter Value Unit
IF forward current 0.5 VR reverse voltage
Page Summary Contents For PHILIPS PMEG2005AEL 0.5 A ultra low VF MEGA Schottky barrier rectifier in leadless ultra small SOD882 package User Manual Data Sheet
Manual Details
| Brand | Philips |
|---|---|
| Pages | 8 |
| File Size | 32.88 KB |
| Published | July 12, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
How do I determine which pin is the anode and cathode?
Pin 1 is designated as the anode, while Pin 2 is the cathode. The marking bar also indicates the cathode.
What types of circuits is this Schottky rectifier suitable for?
It is ideal for ultra high-speed switching, voltage clamping, low rectification, and DC-to-DC conversion applications.
What are the maximum continuous operating temperature limits?
The product supports an ambient operating temperature range from -65°C to +150°C.
What is the component's rated reverse voltage and forward current capacity?
It has a reverse voltage (V_R) of 20 V and a continuous forward current rating of 0.5 A.
