PHILIPS Schottky Barrier Diode 1PS76SB62 Data Sheet User Manual
Summary
Discrete semiconductor datasheet for the Philips 1PS76SB62 Schottky barrier diode in SOD323 (SC-76) very small SMD package. Features ultra-high switching speed, very low capacitance (0.6 pF typ), high breakdown voltage of 40V, and guard ring protection. Rated for 20mA continuous forward current, 800mV forward voltage at 2mA, and 1uA reverse current at 40V. ESD sensitive device requiring handling precautions. Thermal resistance 450 K/W junction-to-ambient. Applications include ultra high-speed switching and high frequency circuits.
Page 1 Text Content

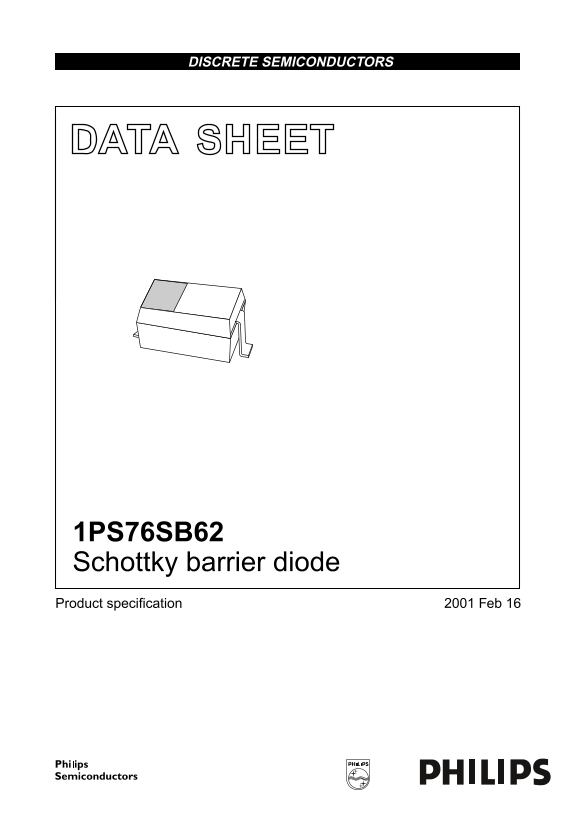

DISCRETE SEMICONDUCTORS
DATA SHEET
k, halfpage
1PS76SB62 Schottky barrier diode Product specification Feb
Page Summary Contents For PHILIPS Schottky Barrier Diode 1PS76SB62 Data Sheet User Manual
Manual Details
| Brand | Philips |
|---|---|
| Pages | 8 |
| File Size | 54.38 KB |
| Published | June 16, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What is the maximum continuous reverse voltage rating?
The maximum continuous reverse voltage limit value is -40 V.
What types of applications is this diode designed for?
It is suited for ultra high-speed switching and various high frequency applications.
Are there special precautions needed when handling the device?
Yes, the component is ESD sensitive, so observe proper handling precautions.
What package name does this diode utilize?
It uses a very small plastic SMD package labeled SOD323 (SC-76).
