Philips MCD2010 Usage Instructions (English)
Summary
The Philips MCD2010 is a compact DVD player and FM radio with USB playback. This manual covers safety, setup, disc/USB playback, FM radio tuning, audio/video settings, alarm and sleep timers, and troubleshooting. Supporting multiple disc and audio formats, the device features headphone output, external audio input, and multilingual on-screen display. Safety features include laser radiation protection. It targets home entertainment consumers seeking an all-in-one compact media player combining DVD, radio, and USB functionality for everyday home use.
Page 1 Text Content
Register your product and get support at www.philips.com/welcome
MCD2010
EN User manual 3
Page Summary Contents For Philips MCD2010 Usage Instructions (English)

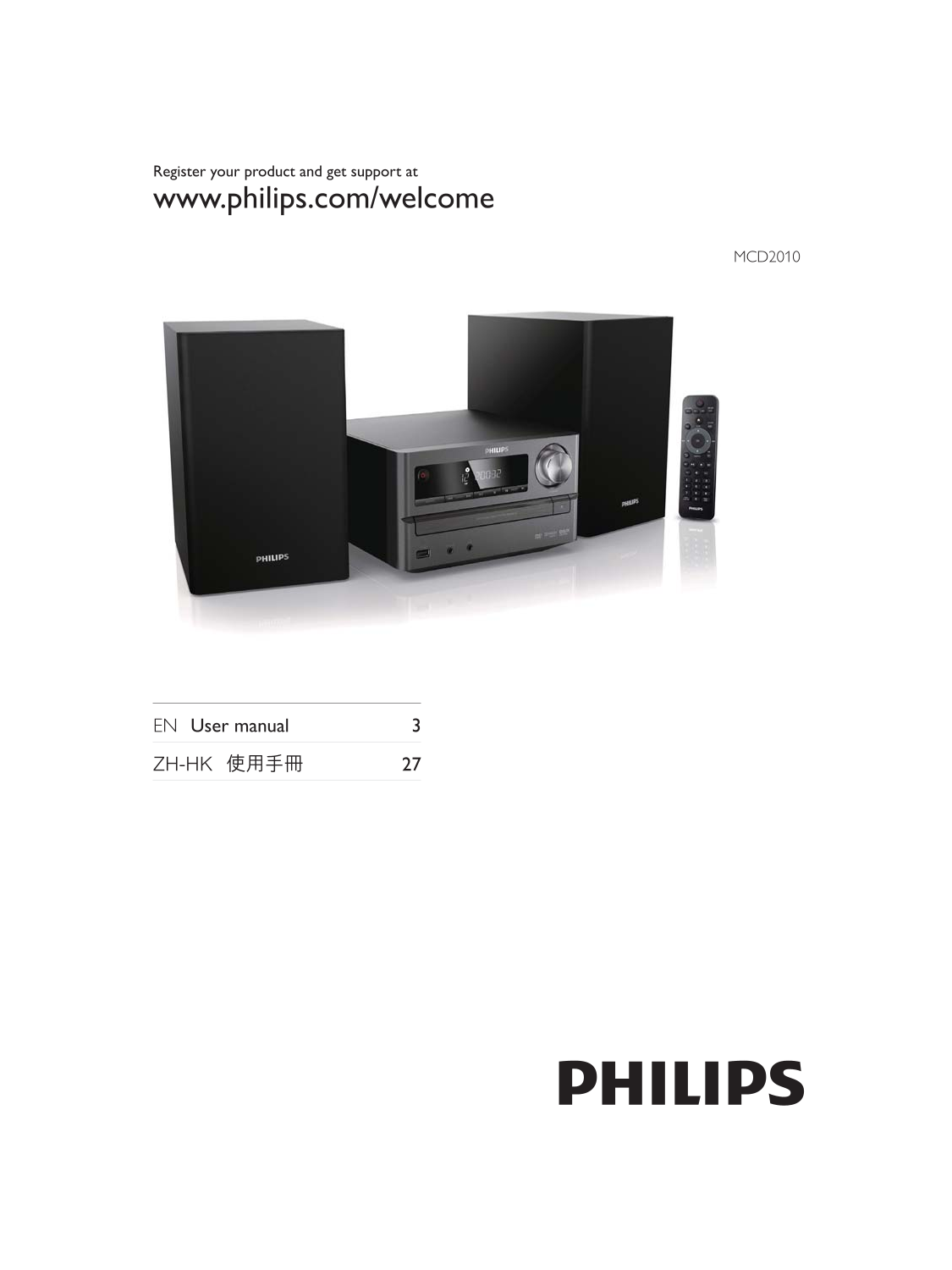

Page 1
Register your product and get support at www.philips.com/welcome MCD2010 EN User manual 3
Page 2
Contents 1 Important 4 8 Other features 21 Know these safety symbols 4 Set alarm timer 21 Important Safety Instructions 4 Set sleep timer 22 Hearing safety 5 Listen through headphone 22 Notice 5 Liste...
Page 3
Do not install near any heat sources such 1 Important as radiators, heat registers, stoves, or other heat. Know these safety symbols Protect the power cord from being walked on or pinched, particularl...
Page 4
Prolonged exposure to sound, even at Warning normally ‘safe’ levels, can also cause hearing Never remove the casing of this device. loss. Never lubricate any part of this device. Be sure to use your e...
Page 5
disposal of batteries helps prevent potentially negative consequences on the environment and human health. ABOUT DIVX VIDEO: Div X® is a digital video Please visit www.recycle.philips.com for addition...
Page 6
2 Congratulations What’s in the box Check and identify the contents of your Video cable If you contact Philips, you will be asked for the FM antenna aerial model and serial number of this product. The...
Page 7
Overview of the main unit a Disc compartment h TUNING Hold the disc. Rotate a photo. Fast backward or forward. USB socket. Start or pause play. c MP3 LINK Connect external audio device. Stop play. Era...
Page 8
Back view a SPEAKER OUT e VIDEO OUT Connect the speakers. Video output jack. b AUX-IN f AUDIO OUT L/R Connect an external audio device. Audio output jack. c AC MAIN~ g COAXIAL Connected with AC power ...
Page 9
AUDIO: Toggle between stereo and Overview of remote control mono. SUBTITLE: Select a subtitle language for a video. f OK g / Search in a track or disc. Fast backward or forward. For menus, navigate le...
Page 10
r MODE/OPTIONS 3 Before use Select repeat play or random play. Accesses options relating to the current activity or selection. Place the unit 1 Place the unit near to the TV. 2 Place the speakers at a...
Page 11
Option 2: Connect through Connect component video cables Connect speakers 1 Insert the speaker wires completely into the speaker input sockets on the back of the unit. Pr/Cr YPb/Cb Connect a progressi...
Page 12
the AUX IN L/R sockets on this product. the audio output sockets on the external Prepare the remote control AUX OUT Connect FM aerial Tip For optimal reception, fully extend and adjust the position of...
Page 13
4 Get started 4 Press PROG/CLOCK SET setup. Note Turn on The number key on the remote control is deactivated 1 Press . in this mode. The unit switches to the last selected source. Note Store radio sta...
Page 14
Select the correct TV system 5 Play disc/USB This unit is compatible with both NTSC and PAL. If the picture is abnormally displayed with the default setting, select a TV system that Caution Risk of da...
Page 15
1 During play, press SUBTITLE repeatedly. 2 Insert the USB storage device. The unit starts playing automatically. Note The user interface is displayed. For some DVDs, the language can only be changed ...
Page 16
Search forward/backward 3 Press , and use / to select the right ratio. 1 During video/audio play, press / repeatedly to select a search speed. To resume play at normal speed, press Search by time or t...
Page 17
3 Press , and use / to select the sub Key Function options. VOL +/- To increase/decrease the volume. Rotate picture [POP simultaneously 4 Press OK to start the slideshow. The slideshow stops after al...
Page 18
6 Listen to FM Program radio stations manually radio Tune to FM radio stations You can program a maximum of 20 preset radio stations. 1 Tune to a radio station. Ensure that you have connected and full...
Page 19
[Sleep Timer]:Sets a sleep timer to 7 Setup 1 After you press the button . registration code of Div X Video On The home menu appears. Demand Registration. If you select a language which is not availab...
Page 20
[Night Mode]: Select quiet or full 8 Other features dynamic sound. Night mode decreases the volume of loud sound and increases the volume of soft sound Set alarm timer This unit can be used as an alar...
Page 21
Set sleep timer 9 Product 1 When the unit is turned on, press information SLEEP/TIMER repeatedly to select a time When sleep timer is activated, is displayed. Product information is subject to change ...
Page 22
Video Decoding MPEG-1 / MPEG-2 / Div X Consumption Video DAC 12 Bits Eco Standby Power 0.5 W Consumption Signal System PAL / NTSC USB Direct Version 2.0 Composite Video 1.0 Vp-p, 75 ohm Output Coaxial...
Page 23
Supported audio media CD CD-R/RW MP3-CD WMA-CD Supported following audio formats: Dolby Digital Plus/5.1 PCM Audio MP3, MP3 ID3 Tag WMA, WMA Tags The following formats are not supported: Files like *....
Page 24
The aspect ratio of the TV screen cannot be 10 Troubleshooting Caution The aspect ratio may not be changed for Never remove the casing of this apparatus. some TV systems. No sound or poor sound To kee...
Page 25
Poor radio reception Increase the distance between the apparatus and your TV or VCR. Fully extend the FM antenna. Connect an outdoor FM antenna instead. Audio or subtitle languages cannot be set The d...
Page 26
© 2011 Koninklijke Philips Electronics N.V. All rights reserved. MCD2010_98_UM_V2.0
Manual Details
| Brand | Philips |
|---|---|
| Pages | 26 |
| File Size | 704.63 KB |
| Published | July 04, 2026 |
5 views
Enter the captcha to get the download link:
Frequently Asked Questions
How should I place the unit for safe use?
Place it away from heat sources, direct sunlight, and other electrical equipment. Do not block ventilation openings.
Why is there no picture on the TV?
Check video connection and turn TV to correct Video-In channel. Moisture inside may require leaving system on for an hour.
What supported disc formats does the unit play?
The unit supports standard disc formats as listed in product information, including region-coded discs per its region code.
How do I fix poor FM radio reception?
Increase distance from TV/VCR, fully extend FM antenna, or connect an outdoor FM antenna.
