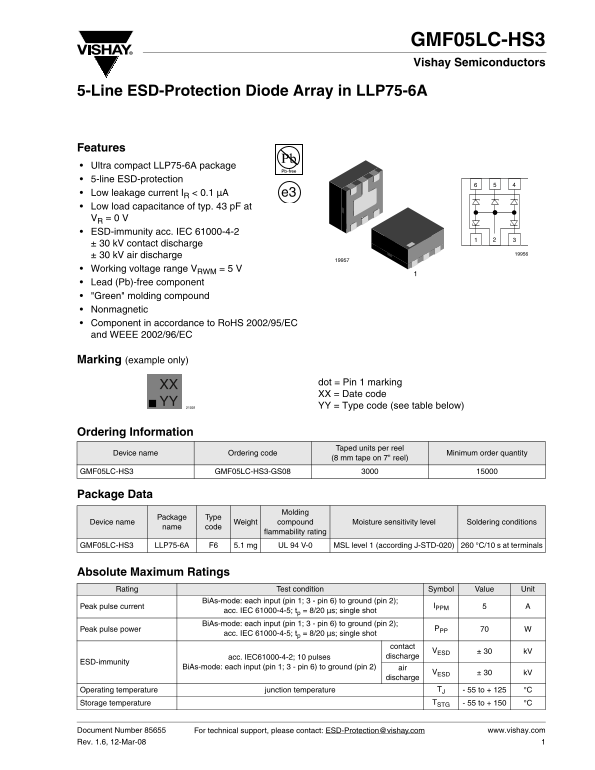

GMF05LC-HS3 Vishay Semiconductors

5-Line ESD-Protection Diode Array in LLP75-6A

Features Ultra compact LLP75-6A package 5-line ESD-protection Low leakage current IR < 0.1 µA e3 Low load capacitance of typ. 43 p F at VR = 0 V ESD-immunity acc. IEC 61000-4-2 ± 30 k V contact discharge ± 30 k V air discharge Working voltage range VRWM = 5 V Lead (Pb)-free component "Green" molding compound Nonmagnetic Component in accordance to Ro HS 2002/95/EC and WEEE 2002/96/EC

Marking (example only)

dot = Pin 1 marking

XX = Date code

YY = Type code (see table below)

Ordering Information

Taped units per reel

Device name Ordering code Minimum order quantity

(8 mm tape on 7" reel)

GMF05LC-HS3 GMF05LC-HS3-GS08

Package Data

Molding

Package Type

Device name Weight compound Moisture sensitivity level Soldering conditions

name code

flammability rating

GMF05LC-HS3 LLP75-6A F6 5.1 mg UL 94 V-0 MSL level 1 (according J-STD-020) 260 °C/10 s at terminals

Absolute Maximum Ratings Rating Test condition Symbol Value Unit

Bi As-mode: each input (pin 1; 3 - pin 6) to ground (pin 2);

Peak pulse current IPPM

acc. IEC 61000-4-5; tp = 8/20 µs; single shot Bi As-mode: each input (pin 1; 3 - pin 6) to ground (pin 2);

Peak pulse power PPP

acc. IEC 61000-4-5; tp = 8/20 µs; single shot

contact

VESD ± 30 k V

acc. IEC61000-4-2; 10 pulses discharge

ESD-immunity

Bi As-mode: each input (pin 1; 3 - pin 6) to ground (pin 2) air

VESD ± 30 k V

discharge

Operating temperature junction temperature TJ - 55 to + 125 °C Storage temperature TSTG - 55 to + 150 °C

Document Number 85655 For technical support, please contact: [email protected] www.vishay.com Rev. 1.6, 12-Mar-08
