Vishay Semiconductor GSOT03C-HT3 to GSOT36C-HT3 Two-Line ESD-Protection in LLP75 Data Sheet Owner's Manual
Summary
These advanced ESD protection devices provide robust, two-line safeguarding against electrostatic disturbances up to ±30 kV in a space-saving LLP package. Ideal for electronics manufacturers and design engineers, these Pb-free solutions ensure product reliability while meeting stringent RoHS compliance standards. The technical manual provides comprehensive specifications, including detailed electrical ratings (peak pulse power), IEC 61000-4-2 immunity confirmation, operating temperature ranges, packaging details, and complete ordering guides for various component sizes.

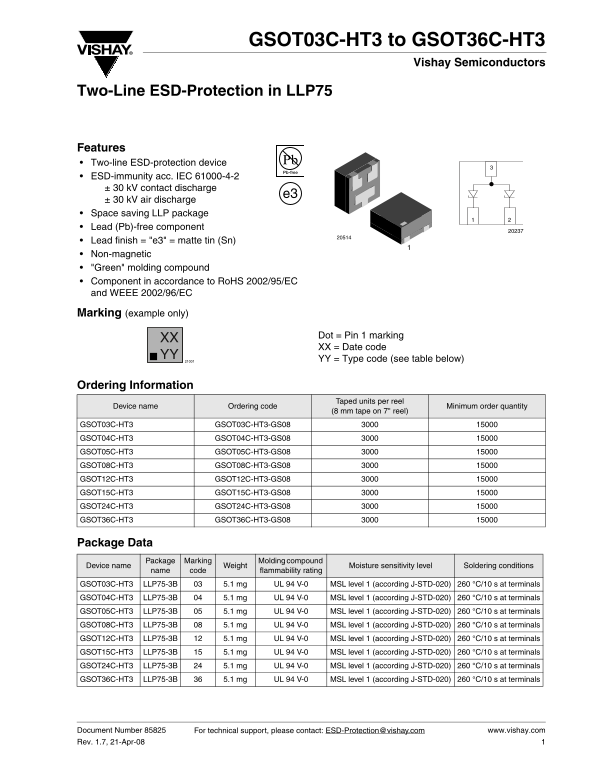

Page 1 Text Content
GSOT03C-HT3 to GSOT36C-HT3
Vishay Semiconductors
Two-Line ESD-Protection in LLP75
Features Two-line ESD-protection device ESD-immunity acc. IEC 61000-4-2 ± 30 k V contact discharge
± 30 k V air discharge Space saving LLP package Lead (Pb)-free component Lead finish = "e3" = matte tin (Sn) Non-magnetic "Green" molding compound Component in accordance to Ro HS 2002/95/EC and WEEE 2002/96/EC
Marking (example only)
Dot = Pin 1 marking
XX = Date code
YY = Type code (see table below)
Ordering Information
Taped units per reel
Device name Ordering code Minimum order quantity
(8 mm tape on 7" reel)
GSOT03C-HT3 GSOT03C-HT3-GS08
GSOT04C-HT3 GSOT04C-HT3-GS08 GSOT05C-HT3 GSOT05C-HT3-GS08 GSOT08C-HT3 GSOT08C-HT3-GS08
GSOT12C-HT3 GSOT12C-HT3-GS08 GSOT15C-HT3 GSOT15C-HT3-GS08 GSOT24C-HT3 GSOT24C-HT3-GS08
GSOT36C-HT3 GSOT36C-HT3-GS08
Package Data
Package Marking Molding compound
Device name Weight Moisture sensitivity level Soldering conditions
name code flammability rating
GSOT03C-HT3 LLP75-3B 5.1 mg UL 94 V-0 MSL level 1 (according J-STD-020) 260 °C/10 s at terminals GSOT04C-HT3 LLP75-3B 5.1 mg UL 94 V-0 MSL level 1 (according J-STD-020) 260 °C/10 s at terminals GSOT05C-HT3 LLP75-3B 5.1 mg UL 94 V-0 MSL level 1 (according J-STD-020) 260 °C/10 s at terminals
GSOT08C-HT3 LLP75-3B 5.1 mg UL 94 V-0 MSL level 1 (according J-STD-020) 260 °C/10 s at terminals GSOT12C-HT3 LLP75-3B 5.1 mg UL 94 V-0 MSL level 1 (according J-STD-020) 260 °C/10 s at terminals GSOT15C-HT3 LLP75-3B 5.1 mg UL 94 V-0 MSL level 1 (according J-STD-020) 260 °C/10 s at terminals
GSOT24C-HT3 LLP75-3B 5.1 mg UL 94 V-0 MSL level 1 (according J-STD-020) 260 °C/10 s at terminals GSOT36C-HT3 LLP75-3B 5.1 mg UL 94 V-0 MSL level 1 (according J-STD-020) 260 °C/10 s at terminals
Document Number 85825 For technical support, please contact: [email protected] www.vishay.com Rev. 1.7, 21-Apr-08
Page Summary Contents For Vishay Semiconductor GSOT03C-HT3 to GSOT36C-HT3 Two-Line ESD-Protection in LLP75 Data Sheet Owner's Manual
Manual Details
| Brand | Vishay |
|---|---|
| Pages | 13 |
| File Size | 240.05 KB |
| Published | June 15, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
Is this component lead-free?
Yes, it is a Lead (Pb)-free component.
What are the operating temperature limits?
The junction temperature range is -40 to +125 °C.
How should I solder this device?
Soldering conditions require 260 °C/10 s at terminals.
What form of ESD protection does it provide?
It provides IEC 61000-4-2 tested contact and air discharge ESD immunity up to ± 30 kV.
