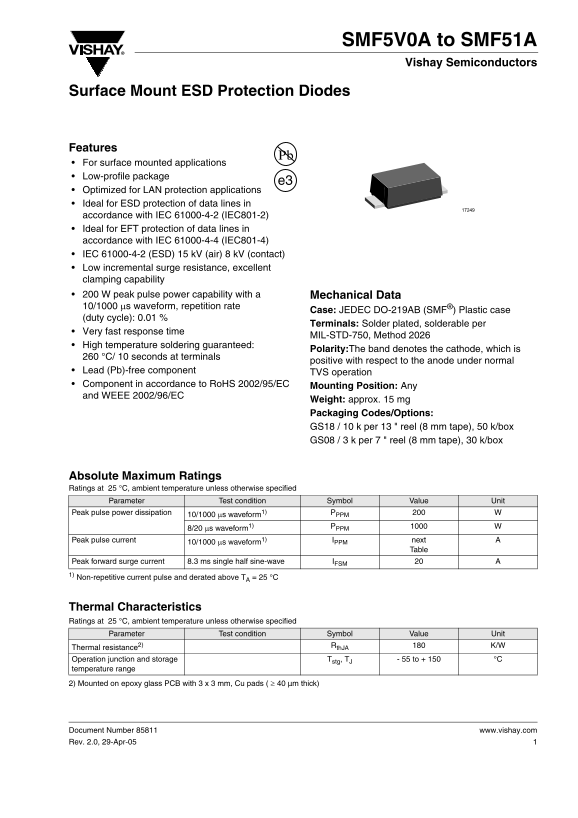

Page 1 Text Content

SMF5V0A to SMF51A Vishay Semiconductors

Surface Mount ESD Protection Diodes

Features For surface mounted applications Low-profile package

Optimized for LAN protection applications Ideal for ESD protection of data lines in accordance with IEC 61000-4-2 (IEC801-2) Ideal for EFT protection of data lines in accordance with IEC 61000-4-4 (IEC801-4) IEC 61000-4-2 (ESD) 15 k V (air) 8 k V (contact) Low incremental surge resistance, excellent clamping capability 200 W peak pulse power capability with a Mechanical Data 10/1000 µs waveform, repetition rate

Case: JEDEC DO-219AB (SMF®) Plastic case

(duty cycle): 0.01 %

Terminals: Solder plated, solderable per

Very fast response time

MIL-STD-750, Method 2026

High temperature soldering guaranteed:

Polarity:The band denotes the cathode, which is

°C/ 10 seconds at terminals

positive with respect to the anode under normal

Lead (Pb)-free component TVS operation Component in accordance to Ro HS 2002/95/EC Mounting Position: Any and WEEE 2002/96/EC

Weight: approx. 15 mg Packaging Codes/Options: GS18 / 10 k per 13 " reel (8 mm tape), 50 k/box GS08 / 3 k per 7 " reel (8 mm tape), 30 k/box

Absolute Maximum Ratings Ratings at 25 °C, ambient temperature unless otherwise specified

Parameter Test condition Symbol Value Unit

Peak pulse power dissipation PPPM

10/1000 µs waveform1)

8/20 µs waveform1)

Peak pulse current IPPM next

10/1000 µs waveform1)

Table

Peak forward surge current 8.3 ms single half sine-wave IFSM 1) Non-repetitive current pulse and derated above TA = 25

Thermal Characteristics Ratings at 25 °C, ambient temperature unless otherwise specified

Parameter Test condition Symbol Value Unit

Rth JA K/W

Thermal resistance2) Operation junction and storage Tstg, TJ - 55 to + 150 °C temperature range

2) Mounted on epoxy glass PCB with 3 x 3 mm, Cu pads ( ≥ 40 µm thick)

Document Number 85811 www.vishay.com Rev. 2.0, 29-Apr-05

Page Summary Contents For Vishay SMF5V0A to SMF51A Data Sheet

Page 1 SMF5V0A to SMF51A Vishay Semiconductors Surface Mount ESD Protection Diodes Features For surface mounted applications Low-profile package Optimized for LAN protection applications Ideal for ESD protec...
Page 2 SMF5V0A to SMF51A Vishay Semiconductors Electrical Characteristics Ratings at 25 °C ambient temperature unless otherwise specified. VF = 3.5 V at IF = 12 A (uni-directional only) Partnumber Marking Br...
Page 3 SMF5V0A to SMF51A Vishay Semiconductors ls rr t, ls (P rr (I Typical Characteristics (Tamb = 25 °C unless otherwise specified) ls (k ra tin in rc ta Non-repetitive Pulse Waveform shown in Fig. TA °C 0...
Page 4 SMF5V0A to SMF51A Vishay Semiconductors Package Dimensions in mm (Inches) Cathode Band Detail View enlarged 0.10 max ISO Method Mounting Pad Layout 1.6 (0.062) 1.3 (0.051) www.vishay.com Document Numb...
Page 5 SMF5V0A to SMF51A Vishay Semiconductors Blistertape for SMF Document Number 85811 www.vishay.com Rev. 2.0, 29-Apr-05
Page 6 SMF5V0A to SMF51A Vishay Semiconductors Ozone Depleting Substances Policy Statement It is the policy of Vishay Semiconductor Gmb H to 1. Meet all present and future national and international statutor...
Page 7 Legal Disclaimer Notice Vishay Notice Specifications of the products displayed herein are subject to change without notice. Vishay Intertechnology, Inc., or anyone on its behalf, assumes no responsibi...
