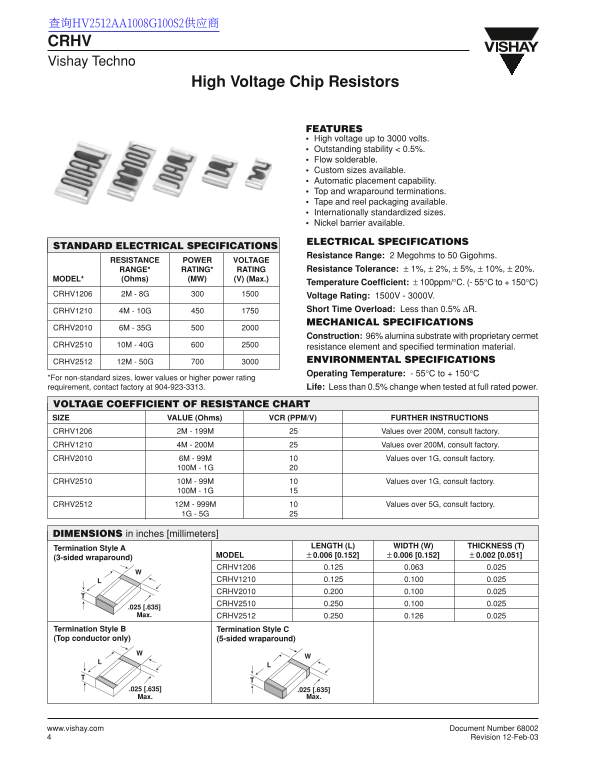

查询HV2512AA1008G100S2供应商 CRHV Vishay Techno
High Voltage Chip Resistors
FEATURES High voltage up to 3000 volts. Outstanding stability < 0.5%. Flow solderable. Custom sizes available. Automatic placement capability. Top and wraparound terminations. Tape and reel packaging available. Internationally standardized sizes. Nickel barrier available.
ELECTRICAL SPECIFICATIONS
STANDARD ELECTRICAL SPECIFICATIONS
Resistance Range: 2 Megohms to 50 Gigohms.
RESISTANCE POWER VOLTAGE
RANGE* RATING* RATING Resistance Tolerance: ± 1%, ± 2%, ± 5%, ± 10%, ± 20%.
MODEL* (Ohms) (MW) (V) (Max.)
Temperature Coefficient: ± 100ppm/°C. (- 55°C to + 150°C)
CRHV1206 2M - 8G Voltage Rating: 1500V - 3000V.
CRHV1210 4M - 10G Short Time Overload: Less than 0.5% ∆R. MECHANICAL SPECIFICATIONS
CRHV2010 6M - 35G
Construction: 96% alumina substrate with proprietary cermet
CRHV2510 10M - 40G resistance element and specified termination material.
CRHV2512 12M - 50G ENVIRONMENTAL SPECIFICATIONS Operating Temperature: - 55°C to + 150°C
*For non-standard sizes, lower values or higher power rating requirement, contact factory at 904-923-3313. Life: Less than 0.5% change when tested at full rated power.
VOLTAGE COEFFICIENT OF RESISTANCE CHART SIZE VALUE (Ohms) VCR (PPM/V) FURTHER INSTRUCTIONS CRHV1206 2M - 199M Values over 200M, consult factory. CRHV1210 4M - 200M Values over 200M, consult factory. CRHV2010 6M - 99M Values over 1G, consult factory.
CRHV2510 10M - 99M Values over 1G, consult factory.
CRHV2512 12M - 999M Values over 5G, consult factory.
DIMENSIONS in inches [millimeters]
LENGTH (L) WIDTH (W) THICKNESS (T)
Termination Style A
MODEL ± 0.006 [0.152] ± 0.006 [0.152] ± 0.002 [0.051]
(3-sided wraparound)
CRHV1206 0.125 0.063 0.025 CRHV1210 0.125 0.100 0.025 CRHV2010 0.200 0.100 0.025 CRHV2510 0.250 0.100 0.025
.025 [.635] Max. CRHV2512 0.250 0.126 0.025
Termination Style B Termination Style C (Top conductor only) (5-sided wraparound)
Max. Max.
www.vishay.com Document Number 68002
Revision 12-Feb-03
