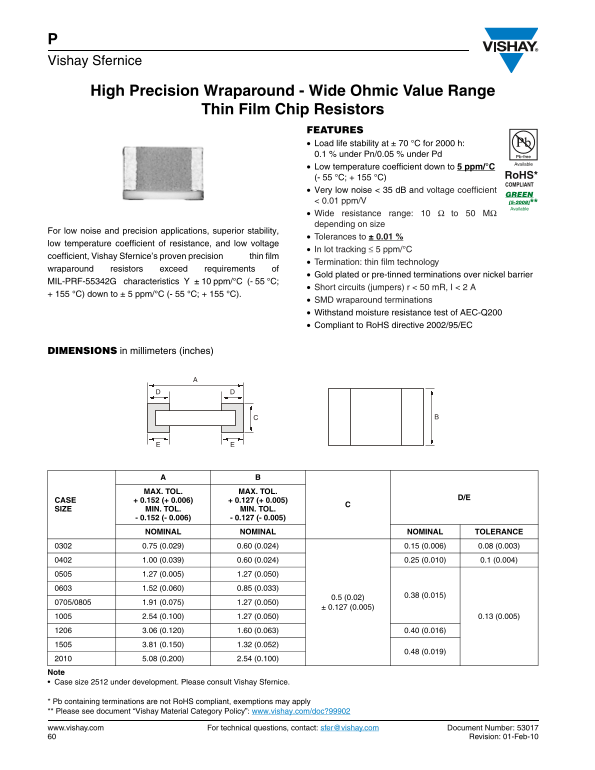

Vishay Sfernice
High Precision Wraparound - Wide Ohmic Value Range
Thin Film Chip Resistors
FEATURES Load life stability at ± 70 °C for 2000 h: 0.1 % under Pn/0.05 % under Pd Low temperature coefficient down to ppm/°C (- 55 °C; + 155 °C) Very low noise < 35 d B and voltage coefficient < 0.01 ppm/V Wide resistance range: 10 Ω to 50 MΩ depending on size
For low noise and precision applications, superior stability,
Tolerances to ± 0.01 %
low temperature coefficient of resistance, and low voltage
In lot tracking ≤ 5 ppm/°C
coefficient, Vishay Sfernice’s proven precision thin film
Termination: thin film technology
wraparound resistors exceed requirements of
Gold plated or pre-tinned terminations over nickel barrier
MIL-PRF-55342G characteristics Y ± 10 ppm/°C (- 55 °C;
Short circuits (jumpers) r < 50 m R, I < 2 A
+ 155 °C) down to ± 5 ppm/°C (- 55 °C; + 155 °C).
SMD wraparound terminations Withstand moisture resistance test of AEC-Q200 Compliant to Ro HS directive 2002/95/EC
DIMENSIONS in millimeters (inches)
MAX. TOL. MAX. TOL.
CASE + 0.152 (+ 0.006) + 0.127 (+ 0.005) SIZE MIN. TOL. MIN. TOL. - 0.152 (- 0.006) - 0.127 (- 0.005)
NOMINAL NOMINAL NOMINAL TOLERANCE
Note Case size 2512 under development. Please consult Vishay Sfernice.
* Pb containing terminations are not Ro HS compliant, exemptions may apply ** Please see document “Vishay Material Category Policy”: www.vishay.com/doc?99902
