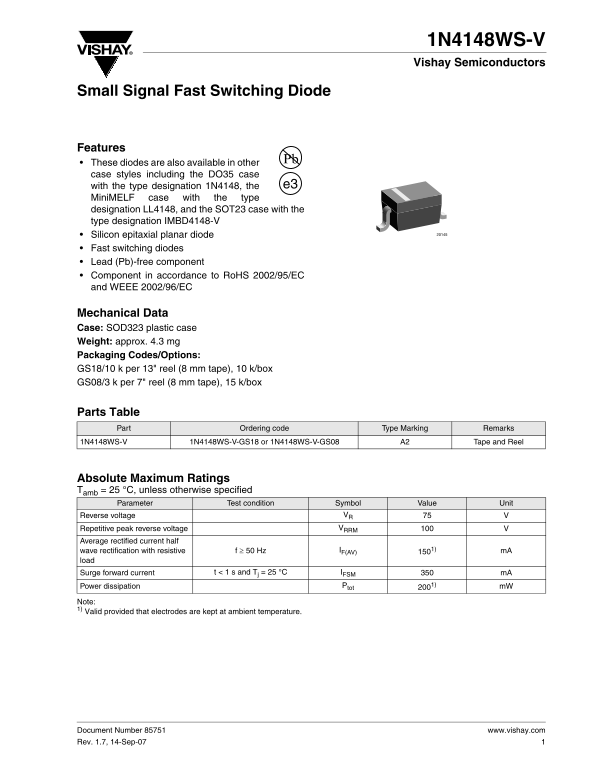

Vishay Semiconductor 1N4148WS-V Small Signal Fast Switching Diode Data Sheet

1N4148WS-V Vishay Semiconductors

Small Signal Fast Switching Diode

Features These diodes are also available in other case styles including the DO35 case

with the type designation 1N4148, the e3

Mini MELF case with the type designation LL4148, and the SOT23 case with the type designation IMBD4148-V Silicon epitaxial planar diode Fast switching diodes Lead (Pb)-free component Component in accordance to Ro HS 2002/95/EC and WEEE 2002/96/EC

Mechanical Data Case: SOD323 plastic case Weight: approx. 4.3 mg Packaging Codes/Options: GS18/10 k per 13" reel (8 mm tape), 10 k/box GS08/3 k per 7" reel (8 mm tape), 15 k/box

Parts Table Part Ordering code Type Marking Remarks 1N4148WS-V 1N4148WS-V-GS18 or 1N4148WS-V-GS08 A2 Tape and Reel

Absolute Maximum Ratings Tamb = 25 °C, unless otherwise specified

Parameter Test condition Symbol Value Unit

Reverse voltage VR Repetitive peak reverse voltage VRRM

Average rectified current half

wave rectification with resistive f ≥ 50 Hz IF(AV) 1501) m A

Surge forward current t < 1 s and Tj = 25 °C IFSM m A

Power dissipation Ptot 2001) m W

Note: 1) Valid provided that electrodes are kept at ambient temperature.

Document Number 85751 www.vishay.com Rev. 1.7, 14-Sep-07
