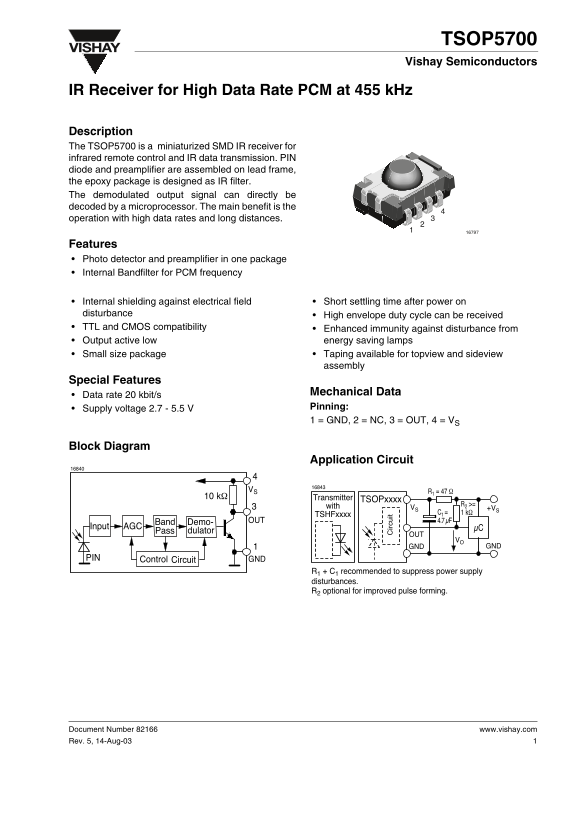

Page 1 Text Content
TSOP5700
VISHAY
Vishay Semiconductors
IR Receiver for High Data Rate PCM at 455 k Hz
Description The TSOP5700 is a miniaturized SMD IR receiver for infrared remote control and IR data transmission. PIN diode and preamplifier are assembled on lead frame, the epoxy package is designed as IR filter. The demodulated output signal can directly be decoded by a microprocessor. The main benefit is the operation with high data rates and long distances.
Features Photo detector and preamplifier in one package Internal Bandfilter for PCM frequency
Internal shielding against electrical field Short settling time after power on
disturbance High envelope duty cycle can be received TTL and CMOS compatibility Enhanced immunity against disturbance from
Output active low energy saving lamps Small size package Taping available for topview and sideview assembly
Special Features
ir it Mechanical Data
Data rate 20 kbit/s
Supply voltage 2.7 - 5.5 V Pinning: 1 = GND, 2 = NC, 3 = OUT, 4 = VS
Block Diagram
Application Circuit
VS R1
kΩ Transmitter
TSOPxxxx
with VS +VS
TSHFxxxx
Band OUTDemo- 4.7 µF
AGCInput µC
Pass dulator
GND GND
PIN Control Circuit GND
R1 C1 recommended to suppress power supply disturbances. R2 optional for improved pulse forming.
Document Number 82166 www.vishay.com Rev. 5, 14-Aug-03
