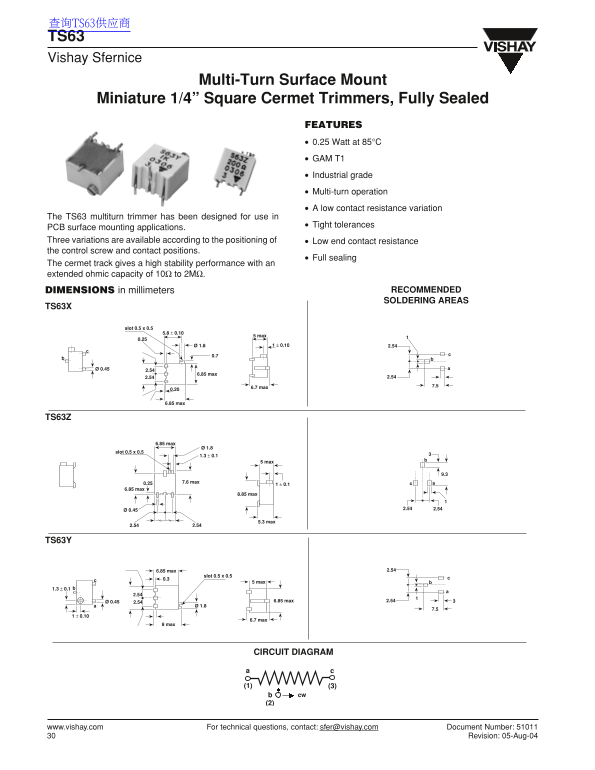

Multi-Turn Surface Mount
Miniature 1/4” Square Cermet Trimmers, Fully Sealed
FEATURES 0.25 Watt at 85°C GAM T1 Industrial grade Multi-turn operation A low contact resistance variation
The TS63 multiturn trimmer has been designed for use in
Tight tolerances
PCB surface mounting applications. Three variations are available according to the positioning of Low end contact resistance the control screw and contact positions.
Full sealing
The cermet track gives a high stability performance with an extended ohmic capacity of 10 to 2M
DIMENSIONS in millimeters RECOMMENDED SOLDERING AREAS
TS63X
slot 0.5 x 0.5
5 max
6.85 max
6.7 max 7.5
6.85 max
TS63Z
6.85 max
slot 0.5 x 0.5
5 max
0.25 7.6 max
6.85 max
8.85 max
5.3 max
TS63Y
6.85 max 2.54
slot 0.5 x 0.5
5 max
Ø 0.45 2.54 6.85 max 2.54
6.7 max
8 max
CIRCUIT DIAGRAM
www.vishay.com For technical questions, contact: [email protected] Document Number: 51011
Revision: 05-Aug-04
