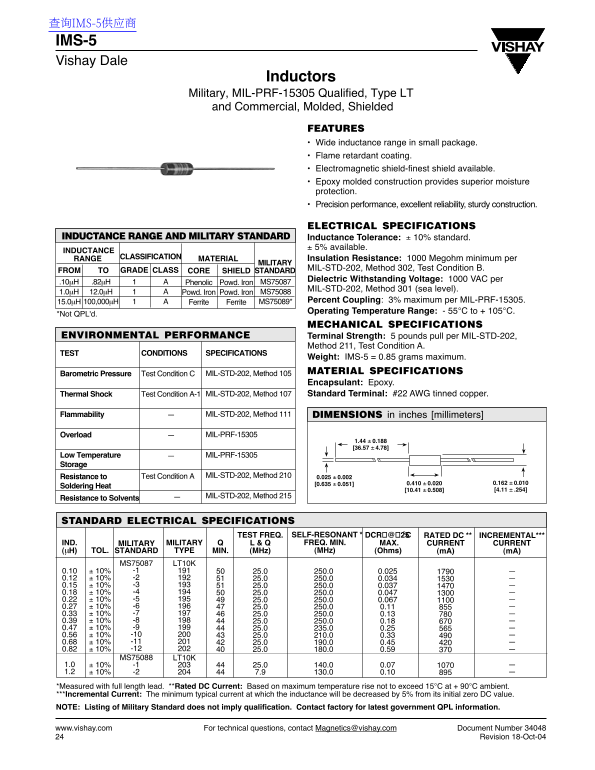

查询IMS-5供应商 IMS-5 Vishay Dale
Inductors
Military, MIL-PRF-15305 Qualified, Type LT and Commercial, Molded, Shielded
FEATURES Wide inductance range in small package. Flame retardant coating. Electromagnetic shield-finest shield available. Epoxy molded construction provides superior moisture protection. Precision performance, excellent reliability, sturdy construction.
ELECTRICAL SPECIFICATIONS
INDUCTANCE RANGE AND MILITARY STANDARD Inductance Tolerance: ± 10% standard.
± 5% available.
INDUCTANCE
RANGE MATERIALCLASSIFICATION Insulation Resistance: 1000 Megohm minimum per
MILITARY
MIL-STD-202, Method 302, Test Condition B.
FROM TO GRADE CLASS CORE SHIELD STANDARD
Dielectric Withstanding Voltage: 1000 VAC per
.10µH .82µH Phenolic Powd. Iron MS75087
MIL-STD-202, Method 301 (sea level).
1.0µH 12.0µH Powd. Iron Powd. Iron MS75088
15.0µH 100,000µH MS75089* Percent Coupling: 3% maximum per MIL-PRF-15305.
Ferrite Ferrite
Operating Temperature Range: - 55°C to + 105°C.
*Not QPL'd.
MECHANICAL SPECIFICATIONS
ENVIRONMENTAL PERFORMANCE Terminal Strength: 5 pounds pull per MIL-STD-202,
Method 211, Test Condition A.
TEST CONDITIONS SPECIFICATIONS
Weight: IMS-5 = 0.85 grams maximum. MIL-STD-202, Method 105 MATERIAL SPECIFICATIONS
Barometric Pressure Test Condition C
Encapsulant: Epoxy. Thermal Shock Test Condition A-1 MIL-STD-202, Method 107 Standard Terminal: #22 AWG tinned copper.
Flammability MIL-STD-202, Method 111 DIMENSIONS in inches [millimeters]
Overload MIL-PRF-15305
Low Temperature MIL-PRF-15305
Storage
Resistance to Test Condition A MIL-STD-202, Method 210 0.025 ± 0.002
Soldering Heat
MIL-STD-202, Method 215
Resistance to Solvents
STANDARD ELECTRICAL SPECIFICATIONS
TEST FREQ. SELF-RESONANT DCR @ 25°C RATED DC INCREMENTAL*** IND. MILITARY MILITARY L & Q FREQ. MIN. MAX. CURRENT CURRENT (µH) TOL. STANDARD TYPE MIN. (MHz) (MHz) (Ohms) (m A) (m A)
MS75087 LT10K 0.10 ± 10% -1 25.0 250.0 0.025 0.12 ± 10% -2 25.0 250.0 0.034 0.15 ± 10% -3 25.0 250.0 0.037 0.18 ± 10% -4 25.0 250.0 0.047 0.22 ± 10% -5 25.0 250.0 0.067 0.27 ± 10% -6 25.0 250.0 0.11 0.33 ± 10% -7 25.0 250.0 0.13 0.39 ± 10% -8 25.0 250.0 0.18 0.47 ± 10% -9 25.0 235.0 0.25 0.56 ± 10% -10 25.0 210.0 0.33 0.68 ± 10% -11 25.0 190.0 0.45 0.82 ± 10% -12 25.0 180.0 0.59 MS75088 LT10K
1.0 ± 10% -1 25.0 140.0 0.07 1.2 ± 10% -2 7.9 130.0 0.10 *Measured with full length lead. **Rated DC Current: Based on maximum temperature rise not to exceed 15°C at + 90°C ambient. ***Incremental Current: The minimum typical current at which the inductance will be decreased by 5% from its initial zero DC value. NOTE: Listing of Military Standard does not imply qualification. Contact factory for latest government QPL information.
www.vishay.com For technical questions, contact [email protected] Document Number 34048
Revision 18-Oct-04
