Essential ESD protection diode designed to safeguard single signal or data lines from damaging voltage transients caused by electrostatic discharge (ESD). This bi-directional, asymmetrical clamping device effectively shunts excessive current spikes to ground, ensuring circuit reliability. The technical manual provides comprehensive electrical characteristics, detailed performance graphs, and application guidelines covering peak pulse currents, clamping voltages, and operating environments. It is a critical resource for electronics engineers and hardware designers developing high-reliability circuits requiring robust transient suppression.

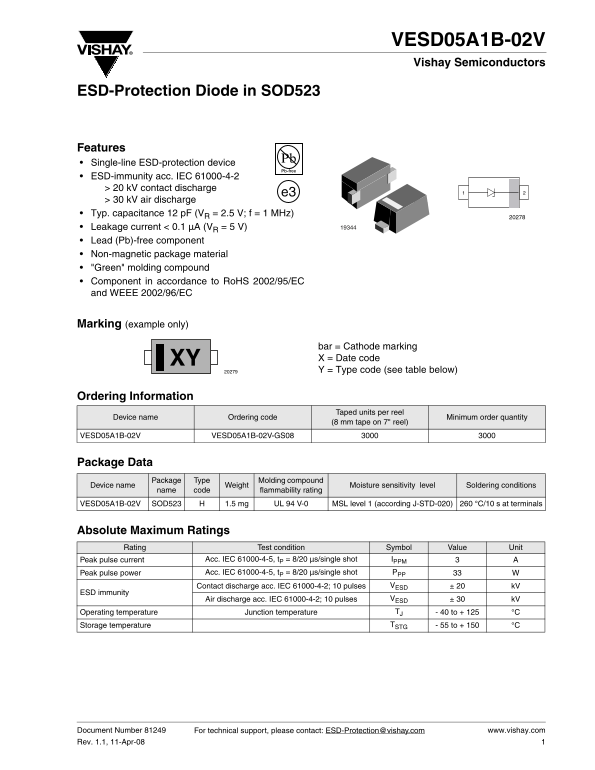

Page 1 Text Content
VESD05A1B-02V Vishay Semiconductors
ESD-Protection Diode in SOD523
Features Single-line ESD-protection device ESD-immunity acc. IEC 61000-4-2 > 20 k V contact discharge
> 30 k V air discharge Typ. capacitance 12 p F (VR = 2.5 V; f = 1 MHz) Leakage current < 0.1 µA (VR = 5 V) Lead (Pb)-free component Non-magnetic package material "Green" molding compound Component in accordance to Ro HS 2002/95/EC and WEEE 2002/96/EC
Marking (example only)
bar = Cathode marking XY X = Date code Y = Type code (see table below)
Ordering Information
Taped units per reel
Device name Ordering code Minimum order quantity
(8 mm tape on 7" reel)
VESD05A1B-02V VESD05A1B-02V-GS08
Package Data
Package Type Molding compound
Device name Weight Moisture sensitivity level Soldering conditions
name code flammability rating
VESD05A1B-02V SOD523 1.5 mg UL 94 V-0 MSL level 1 (according J-STD-020) 260 °C/10 s at terminals
Absolute Maximum Ratings Rating Test condition Symbol Value Unit
Peak pulse current Acc. IEC 61000-4-5, t P = 8/20 µs/single shot IPPM Peak pulse power Acc. IEC 61000-4-5, t P = 8/20 µs/single shot PPP Contact discharge acc. IEC 61000-4-2; 10 pulses VESD ± 20 k V
ESD immunity
Air discharge acc. IEC 61000-4-2; 10 pulses VESD ± 30 k V Operating temperature Junction temperature TJ - 40 to + 125 °C Storage temperature TSTG - 55 to + 150 °C
Document Number 81249 For technical support, please contact: [email protected] www.vishay.com Rev. 1.1, 11-Apr-08
Page Summary Contents For Vishay Semiconductor VESD05A1B-02V User Guide
Manual Details
| Brand | Vishay |
|---|---|
| Pages | 7 |
| File Size | 104.02 KB |
| Published | June 03, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What transient voltage levels can the device protect against?
It provides ESD immunity for both contact discharge (> 20 kV) and air discharge (> 30 kV).
How does the BiAs mode function?
It protects one signal or data line by clamping positive transients to the ground and managing negative transient current flow.
What is the component's maximum operating temperature range?
The junction temperature (T) can operate from -40°C to +125°C.
Can this component be used in RoHS compliant products?
Yes, it is a Lead (Pb)-free component in accordance with both RoHS 2002/95/EC and WEEE 2002/96/EC.
