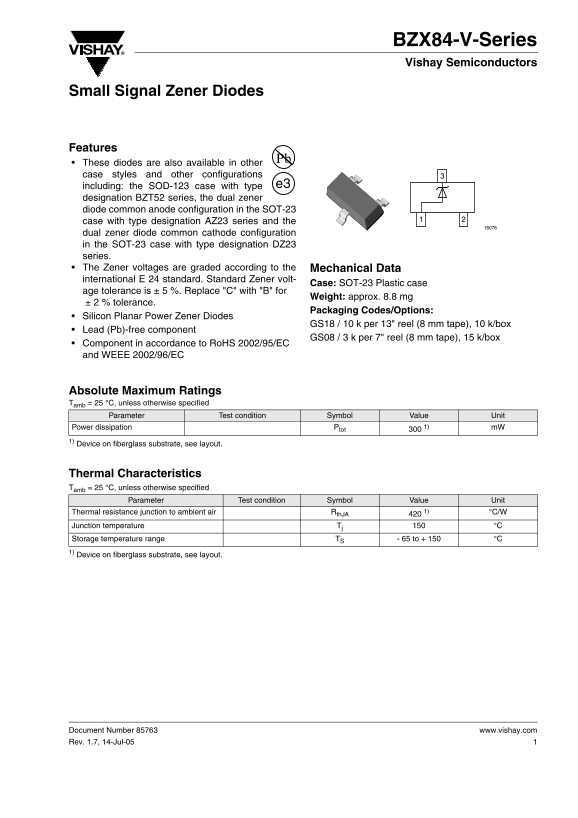

BZX84-V-Series Vishay Semiconductors
Small Signal Zener Diodes
Features These diodes are also available in other case styles and other configurations
including: the SOD-123 case with type e3
designation BZT52 series, the dual zener diode common anode configuration in the SOT-23 case with type designation AZ23 series and the dual zener diode common cathode configuration in the SOT-23 case with type designation DZ23 series. The Zener voltages are graded according to the Mechanical Data international E 24 standard. Standard Zener volt-
Case: SOT-23 Plastic case
age tolerance is ± 5 %. Replace "C" with "B" for
Weight: approx. 8.8 mg
± 2 % tolerance.
Packaging Codes/Options:
Silicon Planar Power Zener Diodes
GS18 / 10 k per 13" reel (8 mm tape), 10 k/box
Lead (Pb)-free component
GS08 / 3 k per 7" reel (8 mm tape), 15 k/box
Component in accordance to Ro HS 2002/95/EC and WEEE 2002/96/EC
Absolute Maximum Ratings Tamb = 25 °C, unless otherwise specified
Parameter Test condition Symbol Value Unit
Power dissipation Ptot m W
1) Device on fiberglass substrate, see layout.
Thermal Characteristics Tamb = 25 °C, unless otherwise specified
Parameter Test condition Symbol Value Unit
Thermal resistance junction to ambient air Rth JA °C/W
Junction temperature Tj °C Storage temperature range TS - 65 to + 150 °C 1) Device on fiberglass substrate, see layout.
Document Number 85763 www.vishay.com Rev. 1.7, 14-Jul-05
