Vishay Si9200EY Specifications and User's Manual

Summary

The Si9200EY is a reliable CAN Bus Driver and Receiver designed for demanding automotive and industrial environments. It ensures robust connectivity by surviving ground shorts, electrical transients, and wide temperature variations (-40 to 125°C), requiring no external components. This summary provides detailed engineering guidance, covering complete pin configurations, absolute maximum ratings, recommended operating conditions, timing parameters, and functional block diagrams for seamless system integration. Ideal for embedded systems developers building high-density, reliable CAN bus communication networks.

📄 Preview PAGE OF 5

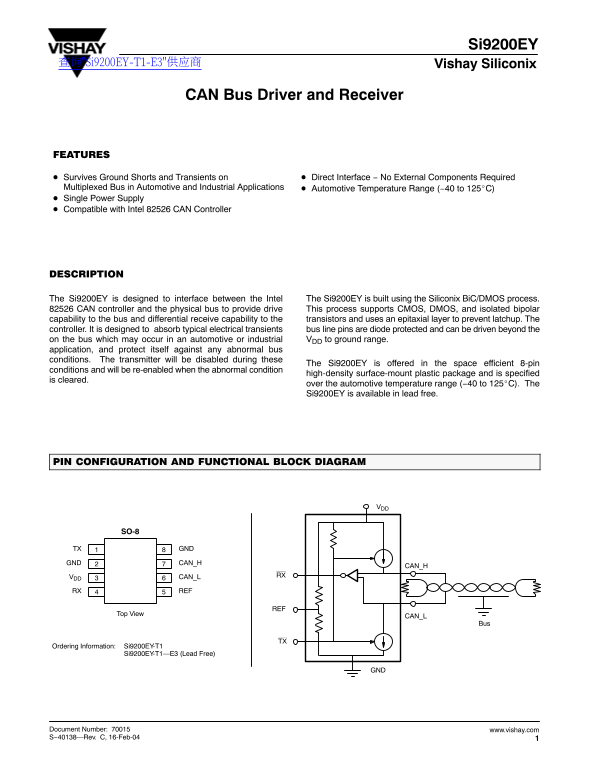

Page 1 Text Content

Si9200EY

查询"Si9200EY-T1-E3"供应商 Vishay Siliconix

CAN Bus Driver and Receiver

FEATURES

Survives Ground Shorts and Transients on Direct Interface − No External Components Required Multiplexed Bus in Automotive and Industrial Applications Automotive Temperature Range (−40 to 125C) Single Power Supply Compatible with Intel 82526 CAN Controller

DESCRIPTION

The Si9200EY is designed to interface between the Intel The Si9200EY is built using the Siliconix Bi C/DMOS process. 82526 CAN controller and the physical bus to provide drive This process supports CMOS, DMOS, and isolated bipolar capability to the bus and differential receive capability to the transistors and uses an epitaxial layer to prevent latchup. The controller. It is designed to absorb typical electrical transients bus line pins are diode protected and can be driven beyond the on the bus which may occur in an automotive or industrial VDD to ground range. application, and protect itself against any abnormal bus conditions. The transmitter will be disabled during these

The Si9200EY is offered in the space efficient 8-pin

conditions and will be re-enabled when the abnormal condition

high-density surface-mount plastic package and is specified

is cleared.

over the automotive temperature range (−40 to 125C). The Si9200EY is available in lead free.

PIN CONFIGURATION AND FUNCTIONAL BLOCK DIAGRAM

TX GND

GND CAN_H

CAN_H

VDD CAN_L RX

RX REF

Top View

CAN_L

Ordering Information: Si9200EY-T1

Si9200EY-T1—E3 (Lead Free)

Document Number: 70015 www.vishay.com S−40138—Rev. C, 16-Feb-04

Page Summary Contents For Vishay Si9200EY Specifications and User's Manual

Page 1 Si9200EY 查询"Si9200EY-T1-E3"供应商 Vishay Siliconix CAN Bus Driver and Receiver FEATURES Survives Ground Shorts and Transients on Direct Interface − No External Components Required Multiplexed B...
Page 2 Si9200EY Vishay Siliconix 查询"Si9200EY-T1-E3"供应商 ABSOLUTE MAXIMUM RATINGSa Operating Temperature (TA) −40 to 125C. . . . . . . . . . . . . . . . . . . . . . . . . . . . Continuous Output Cur...
Page 3 Si9200EY 查询"Si9200EY-T1-E3"供应商 Vishay Siliconix SPECIFICATIONS Limits Test Conditions TA = −40 to 125C Unless Otherwise Specified VDD = 4.75 to 5.25 V Parameter Symbol Minb Typa Maxb Unit D...
Page 4 Si9200EY Vishay Siliconix 查询"Si9200EY-T1-E3"供应商 SWITCHING TIME TEST CIRCUIT tr, tf  10 ns RL = 60 TX CAN_H CL 100 p F CAN_L VDIFF = VCAN_H − VCAN_L 1 V t ON-TX t OFF-TX VRX − VREF 100 m V R...
Page 5 Legal Disclaimer Notice 查询"Si9200EY-T1-E3"供应商 Vishay Disclaimer All product specifications and data are subject to change without notice. Vishay Intertechnology, Inc., its affiliates, agents...

Manual Details

Brand Vishay
Pages 5
File Size 68.03 KB
Published June 03, 2026
21 views

Enter the captcha to get the download link:

captcha

Frequently Asked Questions

Can this device survive abnormal electrical conditions like ground shorts or transients?

Yes, it is designed to absorb typical electrical transients and even survives grounds shorts.

What is the recommended operating temperature range for the Si9200EY?

The specified automotive temperature range is -40 to 125°C.

What are the required voltage ranges for operation (Supply Voltage, V)?

The supply voltage (V DD) should operate between -0.3 and 12 V.

How does it interface with standard CAN bus communication?

It interfaces using dedicated pins for differential signals: CAN_H (Pin 2) and CAN_L (Pin 3).
