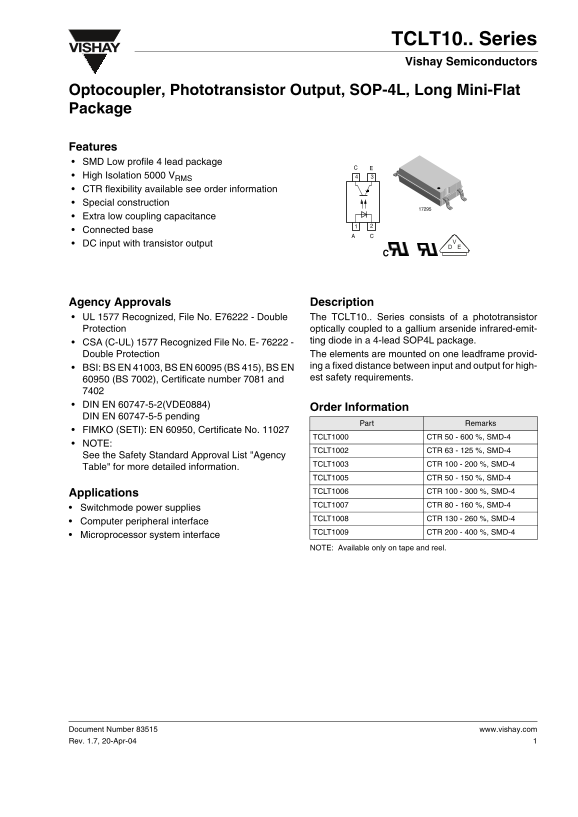

TCLT10.. Series
VISHAY
Vishay Semiconductors
Optocoupler, Phototransistor Output, SOP-4L, Long Mini-Flat Package
Features SMD Low profile 4 lead package High Isolation 5000 VRMS CTR flexibility available see order information Special construction Extra low coupling capacitance Connected base DC input with transistor output
Agency Approvals Description UL 1577 Recognized, File No. E76222 - Double The TCLT10.. Series consists of a phototransistor Protection optically coupled to a gallium arsenide infrared-emit-
CSA (C-UL) 1577 Recognized File No. E- 76222 - ting diode in a 4-lead SOP4L package.
Double Protection The elements are mounted on one leadframe provid-
BSI: BS EN 41003, BS EN 60095 (BS 415), BS EN ing a fixed distance between input and output for high- 60950 (BS 7002), Certificate number 7081 and est safety requirements.
DIN EN 60747-5-2(VDE0884)
Order Information
DIN EN 60747-5-5 pending
Part Remarks
FIMKO (SETI): EN 60950, Certificate No. 11027
TCLT1000 CTR 50 - 600 %, SMD-4
NOTE:
TCLT1002 CTR 63 - 125 %, SMD-4
See the Safety Standard Approval List "Agency
TCLT1003 CTR 100 - 200 %, SMD-4
Table" for more detailed information.
TCLT1005 CTR 50 - 150 %, SMD-4 Applications TCLT1006 CTR 100 - 300 %, SMD-4 TCLT1007 CTR 80 - 160 %, SMD-4
• Switchmode power supplies
TCLT1008 CTR 130 - 260 %, SMD-4
• Computer peripheral interface
TCLT1009 CTR 200 - 400 %, SMD-4
• Microprocessor system interface
NOTE: Available only on tape and reel.
