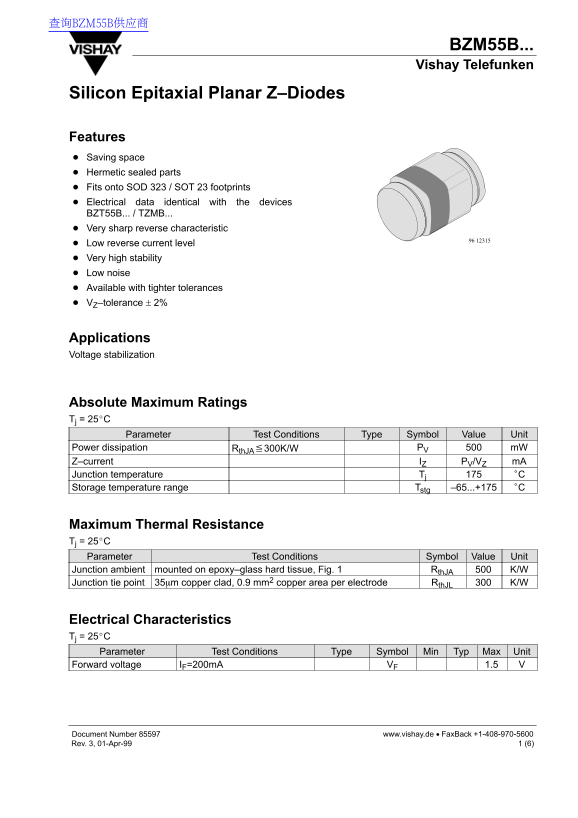

BZM55B... Vishay Telefunken
Silicon Epitaxial Planar Z–Diodes
Features Saving space Hermetic sealed parts Fits onto SOD 323 / SOT 23 footprints Electrical data identical with the devices BZT55B... / TZMB... Very sharp reverse characteristic
Low reverse current level Very high stability Low noise Available with tighter tolerances VZ–tolerance ± 2%
Applications Voltage stabilization
Absolute Maximum Ratings Tj = 25C
Parameter Test Conditions Type Symbol Value Unit
Power dissipation Rth JA300K/W PV m W Z–current IZ PV/VZ m A Junction temperature Tj Storage temperature range Tstg –65...+175
Maximum Thermal Resistance Tj = 25C Parameter Test Conditions Symbol Value Unit Junction ambient mounted on epoxy–glass hard tissue, Fig. 1 Rth JA K/W Junction tie point 35m copper clad, 0.9 mm2 copper area per electrode Rth JL K/W
Electrical Characteristics Tj = 25C Parameter Test Conditions Type Symbol Min Typ Max Unit Forward voltage IF=200m A VF 1.5
