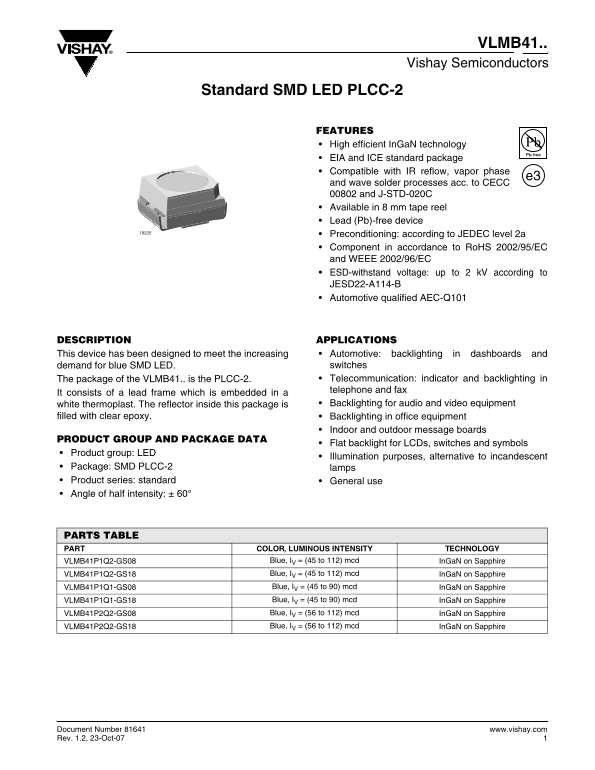

VLMB41..

Vishay Semiconductors

Standard SMD LED PLCC-2

FEATURES High efficient In Ga N technology EIA and ICE standard package Compatible with IR reflow, vapor phase

and wave solder processes acc. to CECC 00802 and J-STD-020C Available in 8 mm tape reel Lead (Pb)-free device Preconditioning: according to JEDEC level 2a Component in accordance to Ro HS 2002/95/EC and WEEE 2002/96/EC ESD-withstand voltage: up to 2 k V according to JESD22-A114-B Automotive qualified AEC-Q101

DESCRIPTION APPLICATIONS This device has been designed to meet the increasing Automotive: backlighting in dashboards and demand for blue SMD LED. switches The package of the VLMB41.. is the PLCC-2. Telecommunication: indicator and backlighting in telephone and fax

It consists of a lead frame which is embedded in a

white thermoplast. The reflector inside this package is Backlighting for audio and video equipment

filled with clear epoxy. Backlighting in office equipment

Indoor and outdoor message boards

PRODUCT GROUP AND PACKAGE DATA

Flat backlight for LCDs, switches and symbols

Product group: LED

Illumination purposes, alternative to incandescent

Package: SMD PLCC-2 lamps Product series: standard General use Angle of half intensity: ± 60°

PARTS TABLE PART COLOR, LUMINOUS INTENSITY TECHNOLOGY

VLMB41P1Q2-GS08 Blue, IV = (45 to 112) mcd In Ga N on Sapphire VLMB41P1Q2-GS18 Blue, IV = (45 to 112) mcd In Ga N on Sapphire VLMB41P1Q1-GS08 Blue, IV = (45 to 90) mcd In Ga N on Sapphire VLMB41P1Q1-GS18 Blue, IV = (45 to 90) mcd In Ga N on Sapphire VLMB41P2Q2-GS08 Blue, IV = (56 to 112) mcd In Ga N on Sapphire VLMB41P2Q2-GS18 Blue, IV = (56 to 112) mcd In Ga N on Sapphire

Document Number 81641 www.vishay.com Rev. 1.2, 23-Oct-07
