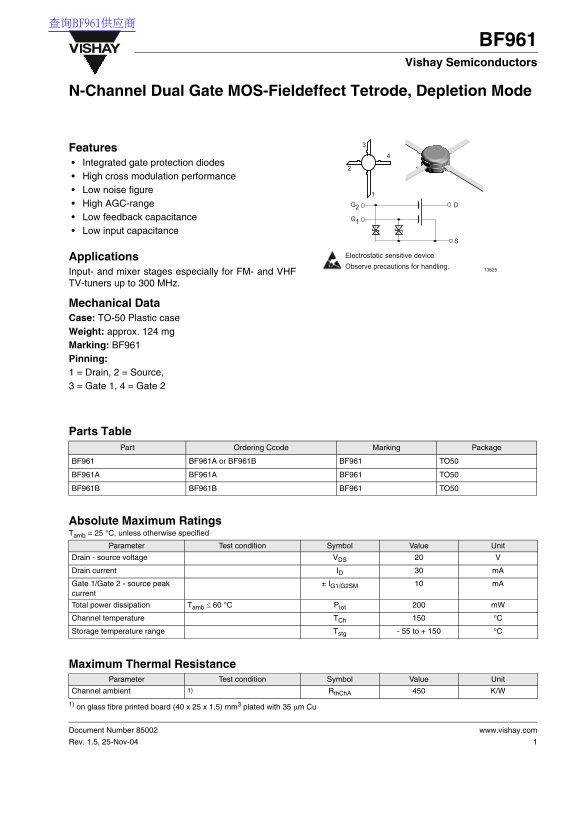

Page 1 Text Content
查询BF961供应商
BF961
Vishay Semiconductors
N-Channel Dual Gate MOS-Fieldeffect Tetrode, Depletion Mode
Features Integrated gate protection diodes High cross modulation performance Low noise figure High AGC-range G2 Low feedback capacitance G1 Low input capacitance
Applications Electrostatic sensitive device. Observe precautions for handling.
Input- and mixer stages especially for FM- and VHF TV-tuners up to 300 MHz.
Mechanical Data Case: TO-50 Plastic case Weight: approx. 124 mg Marking: BF961 Pinning: 1 = Drain, 2 = Source, 3 = Gate 1, 4 = Gate 2
Parts Table
Part Ordering Ccode Marking Package
BF961 BF961A or BF961B BF961 TO50 BF961A BF961A BF961 TO50
BF961B BF961B BF961 TO50
Absolute Maximum Ratings Tamb = 25 °C, unless otherwise specified
Parameter Test condition Symbol Value Unit
Drain - source voltage VDS Drain current ID m A Gate 1/Gate 2 - source peak ± IG1/G2SM m A current Total power dissipation Tamb ≤ 60 °C Ptot m W Channel temperature TCh °C Storage temperature range Tstg - 55 to + 150 °C
Maximum Thermal Resistance Parameter Test condition Symbol Value Unit
Channel ambient 1) Rth Ch A K/W
1) on glass fibre printed board (40 x 25 x 1.5) mm3 plated with 35 µm Cu
Document Number 85002 www.vishay.com Rev. 1.5, 25-Nov-04
