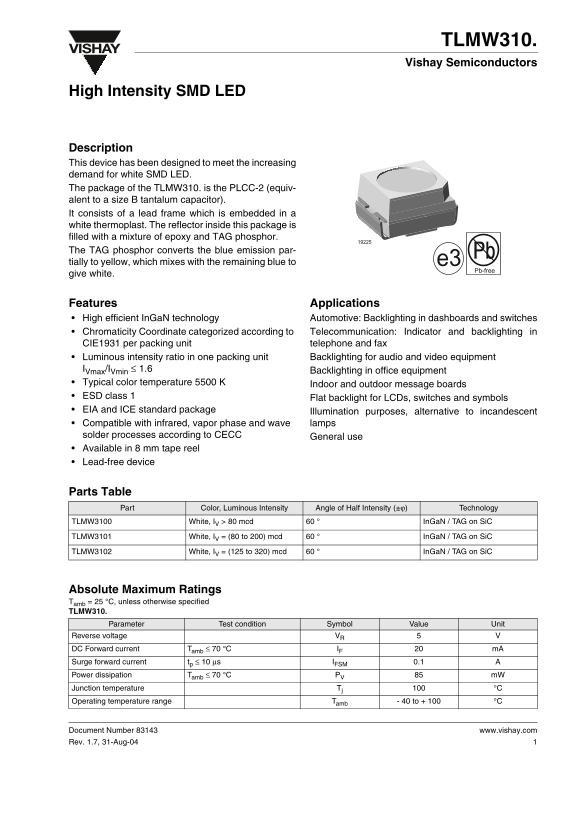

Vishay TLMW310 User Guide and Manual

TLMW310.

VISHAY

Vishay Semiconductors

High Intensity SMD LED

Description This device has been designed to meet the increasing demand for white SMD LED. The package of the TLMW310. is the PLCC-2 (equiv- alent to a size B tantalum capacitor). It consists of a lead frame which is embedded in a white thermoplast. The reflector inside this package is filled with a mixture of epoxy and TAG phosphor. The TAG phosphor converts the blue emission par- Pb tially to yellow, which mixes with the remaining blue to e3

Pb-free

give white.

Features Applications High efficient In Ga N technology Automotive: Backlighting in dashboards and switches Chromaticity Coordinate categorized according to Telecommunication: Indicator and backlighting in CIE1931 per packing unit telephone and fax Luminous intensity ratio in one packing unit Backlighting for audio and video equipment IVmax/IVmin ≤ 1.6 Backlighting in office equipment Typical color temperature 5500 K Indoor and outdoor message boards ESD class 1 Flat backlight for LCDs, switches and symbols EIA and ICE standard package Illumination purposes, alternative to incandescent

Compatible with infrared, vapor phase and wave lamps

solder processes according to CECC General use Available in 8 mm tape reel Lead-free device

Parts Table

Part Color, Luminous Intensity Angle of Half Intensity (±ϕ) Technology

TLMW3100 White, IV > 80 mcd In Ga N / TAG on Si C

TLMW3101 White, IV = (80 to 200) mcd In Ga N / TAG on Si C

TLMW3102 White, IV = (125 to 320) mcd In Ga N / TAG on Si C

Absolute Maximum Ratings Tamb = 25 °C, unless otherwise specified TLMW310.

Parameter Test condition Symbol Value Unit

Reverse voltage VR

DC Forward current Tamb ≤ 70 °C IF m A

Surge forward current tp ≤ 10 µs IFSM 0.1

Power dissipation Tamb ≤ 70 °C PV m W

Junction temperature Tj °C

Operating temperature range Tamb - 40 to + 100 °C

Document Number 83143 www.vishay.com Rev. 1.7, 31-Aug-04
