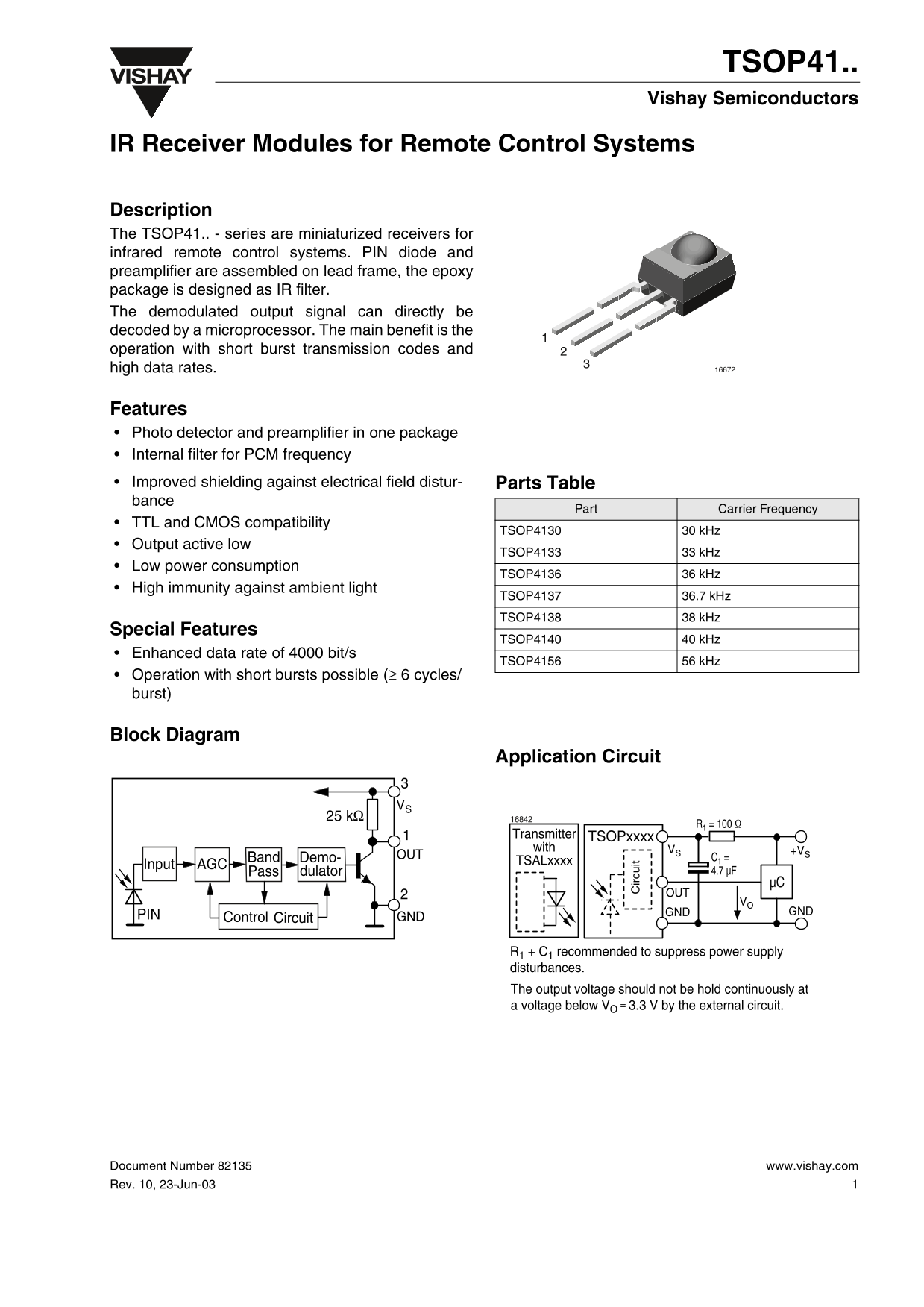

TSOP41..

VISHAY

Vishay Semiconductors

IR Receiver Modules for Remote Control Systems

Description The TSOP41.. - series are miniaturized receivers for infrared remote control systems. PIN diode and preamplifier are assembled on lead frame, the epoxy package is designed as IR filter. The demodulated output signal can directly be decoded by a microprocessor. The main benefit is the operation with short burst transmission codes and high data rates.

Features Photo detector and preamplifier in one package Internal filter for PCM frequency Improved shielding against electrical field distur- Parts Table bance

Part Carrier Frequency

TTL and CMOS compatibility

TSOP4130 30 k Hz

Output active low

TSOP4133 33 k Hz

Low power consumption

TSOP4136 36 k Hz

High immunity against ambient light

TSOP4137 36.7 k Hz TSOP4138 38 k Hz

Special Features

ir cu it

TSOP4140 40 k Hz

Enhanced data rate of 4000 bit/s

TSOP4156 56 k Hz

Operation with short bursts possible (≥ 6 cycles/ burst)

Block Diagram

Application Circuit

Transmitter TSOPxxxx with VS +VS

Band OUTDemo- C1

TSALxxxx

Pass AGCInput dulator 4.7 µF

GND GND

PIN Control Circuit GND

R1 C1 recommended to suppress power supply disturbances. The output voltage should not be hold continuously at voltage below VO 3.3 by the external circuit.

Document Number 82135 www.vishay.com Rev. 10, 23-Jun-03
