Discover the TELUX™ series of high-performance, non-diffused LEDs. Utilizing advanced InGaN technology, this product delivers extreme luminous flux and superior heat dissipation for mission-critical applications. Ideal for engineers and designers implementing architectural, automotive, or industrial lighting systems that require reliable operation across wide temperature ranges (-40 to +100°C). This technical guide provides comprehensive data, including thermal resistance, optical performance metrics, and electrical specifications, ensuring precise integration and optimum lighting results in demanding environments.

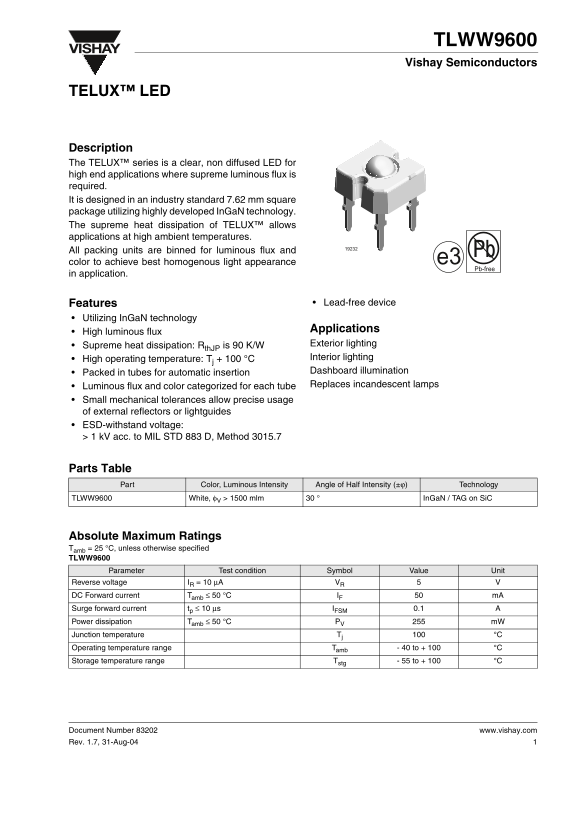

Page 1 Text Content
TLWW9600
VISHAY
Vishay Semiconductors
TELUX™ LED
Description The TELUX™ series is a clear, non diffused LED for high end applications where supreme luminous flux is required. It is designed in an industry standard 7.62 mm square package utilizing highly developed In Ga N technology. The supreme heat dissipation of TELUX™ allows applications at high ambient temperatures. All packing units are binned for luminous flux and Pb
color to achieve best homogenous light appearance e3 Pb-free
in application.
Features Lead-free device
Utilizing In Ga N technology
Applications
High luminous flux
Supreme heat dissipation: Rth JP is 90 K/W Exterior lighting High operating temperature: Tj + 100 °C Interior lighting Packed in tubes for automatic insertion Dashboard illumination Luminous flux and color categorized for each tube Replaces incandescent lamps
Small mechanical tolerances allow precise usage of external reflectors or lightguides ESD-withstand voltage: > 1 k V acc. to MIL STD 883 D, Method 3015.7
Parts Table
Part Color, Luminous Intensity Angle of Half Intensity (±ϕ) Technology
TLWW9600 White, φV > 1500 mlm In Ga N / TAG on Si C
Absolute Maximum Ratings Tamb = 25 °C, unless otherwise specified TLWW9600
Parameter Test condition Symbol Value Unit
Reverse voltage IR = 10 µA VR
DC Forward current Tamb ≤ 50 °C IF m A
Surge forward current tp ≤ 10 µs IFSM 0.1
Power dissipation Tamb ≤ 50 °C PV m W
Junction temperature Tj °C
Operating temperature range Tamb - 40 to + 100 °C Storage temperature range Tstg - 55 to + 100 °C
Document Number 83202 www.vishay.com Rev. 1.7, 31-Aug-04
Page Summary Contents For Vishay TLWW9600 Manual User Guide
Manual Details
| Brand | Vishay |
|---|---|
| Pages | 7 |
| File Size | 291.99 KB |
| Published | May 28, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What types of environments can the TELUX™ LED be used in?
It is suitable for exterior lighting (Dashboard illumination) and interior lighting.
How does this LED perform regarding heat management?
It offers supreme heat dissipation with a junction-to-ambient thermal resistance (RthJA) of 200 K/W, or RthJP of 90 K/W.
Does the product comply with environmental standards?
The device is Pb-free and certifiably does not contain ozone depleting substances (ODSs).
What are its maximum operating temperature ranges?
The standard operating temperature range is -40 to +100 °C. The storage range is -55 to +100 °C.
Are professional validations required for deployment?
All operating parameters must be validated by the customer for their specific application.
