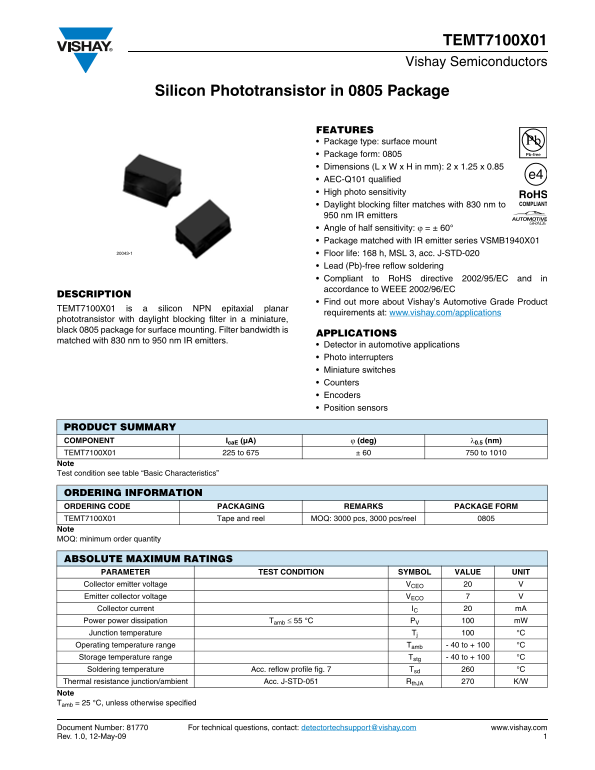

TEMT7100X01 Vishay Semiconductors
Silicon Phototransistor in 0805 Package
FEATURES Package type: surface mount Package form: 0805 Dimensions (L x W x H in mm): 2 x 1.25 x 0.85 AEC-Q101 qualified High photo sensitivity Daylight blocking filter matches with 830 nm to 950 nm IR emitters Angle of half sensitivity: ϕ = ± 60° Package matched with IR emitter series VSMB1940X01
20043-1 Floor life: 168 h, MSL 3, acc. J-STD-020
Lead (Pb)-free reflow soldering Compliant to Ro HS directive 2002/95/EC and in accordance to WEEE 2002/96/EC
DESCRIPTION
Find out more about Vishay’s Automotive Grade Product
TEMT7100X01 is a silicon NPN epitaxial planar
requirements at: www.vishay.com/applications
phototransistor with daylight blocking filter in a miniature, black 0805 package for surface mounting. Filter bandwidth is
APPLICATIONS
matched with 830 nm to 950 nm IR emitters.
Detector in automotive applications Photo interrupters Miniature switches Counters Encoders Position sensors
PRODUCT SUMMARY COMPONENT Ica E (µA) ϕ (deg) λ0.5 (nm) TEMT7100X01 225 to 675 ± 60 750 to 1010 Note Test condition see table “Basic Characteristics”
ORDERING INFORMATION ORDERING CODE PACKAGING REMARKS PACKAGE FORM TEMT7100X01 Tape and reel MOQ: 3000 pcs, 3000 pcs/reel Note MOQ: minimum order quantity
ABSOLUTE MAXIMUM RATINGS
PARAMETER TEST CONDITION SYMBOL VALUE UNIT Collector emitter voltage VCEO Emitter collector voltage VECO Collector current IC m A Power power dissipation Tamb ≤ 55 °C PV m W Junction temperature Tj °C
Operating temperature range Tamb - 40 to + 100 °C
Storage temperature range Tstg - 40 to + 100 °C Soldering temperature Acc. reflow profile fig. 7 Tsd °C
Thermal resistance junction/ambient Acc. J-STD-051 Rth JA K/W
Note Tamb = 25 °C, unless otherwise specified
Document Number: 81770 For technical questions, contact: [email protected] www.vishay.com
Rev. 1.0, 12-May-09
