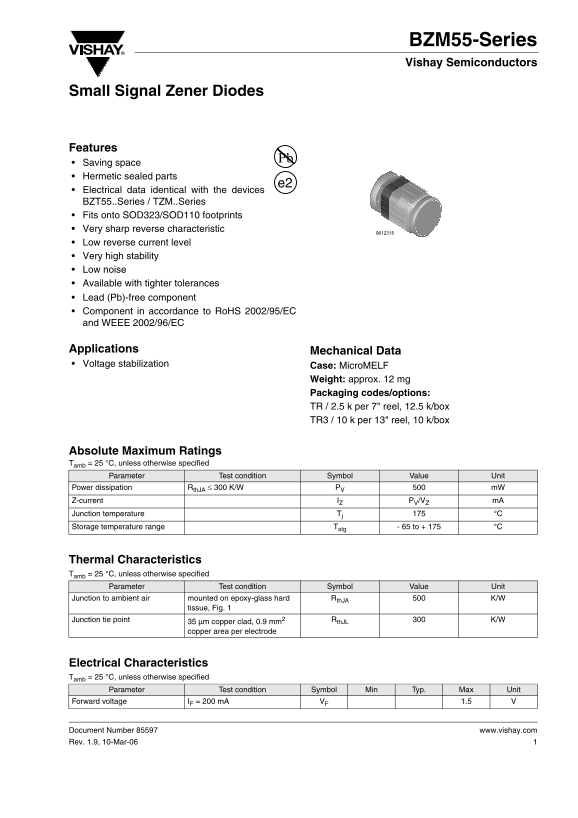

BZM55-Series Vishay Semiconductors
Small Signal Zener Diodes
Features Saving space Hermetic sealed parts
Electrical data identical with the devices BZT55..Series / TZM..Series Fits onto SOD323/SOD110 footprints Very sharp reverse characteristic Low reverse current level Very high stability Low noise Available with tighter tolerances Lead (Pb)-free component Component in accordance to Ro HS 2002/95/EC and WEEE 2002/96/EC
Applications Mechanical Data Voltage stabilization Case: Micro MELF
Weight: approx. 12 mg Packaging codes/options: TR / 2.5 k per 7" reel, 12.5 k/box TR3 / 10 k per 13" reel, 10 k/box
Absolute Maximum Ratings Tamb = 25 °C, unless otherwise specified
Parameter Test condition Symbol Value Unit
Power dissipation Rth JA ≤ 300 K/W PV m W
Z-current IZ PV/VZ m A Junction temperature Tj °C Storage temperature range Tstg - 65 to + 175 °C
Thermal Characteristics Tamb = 25 °C, unless otherwise specified
Parameter Test condition Symbol Value Unit
Junction to ambient air mounted on epoxy-glass hard Rth JA K/W
tissue, Fig. 1
Junction tie point Rth JL K/W
35 µm copper clad, 0.9 mm2 copper area per electrode
Electrical Characteristics Tamb = 25 °C, unless otherwise specified
Parameter Test condition Symbol Min Typ. Max Unit
Forward voltage IF = 200 m A VF 1.5
