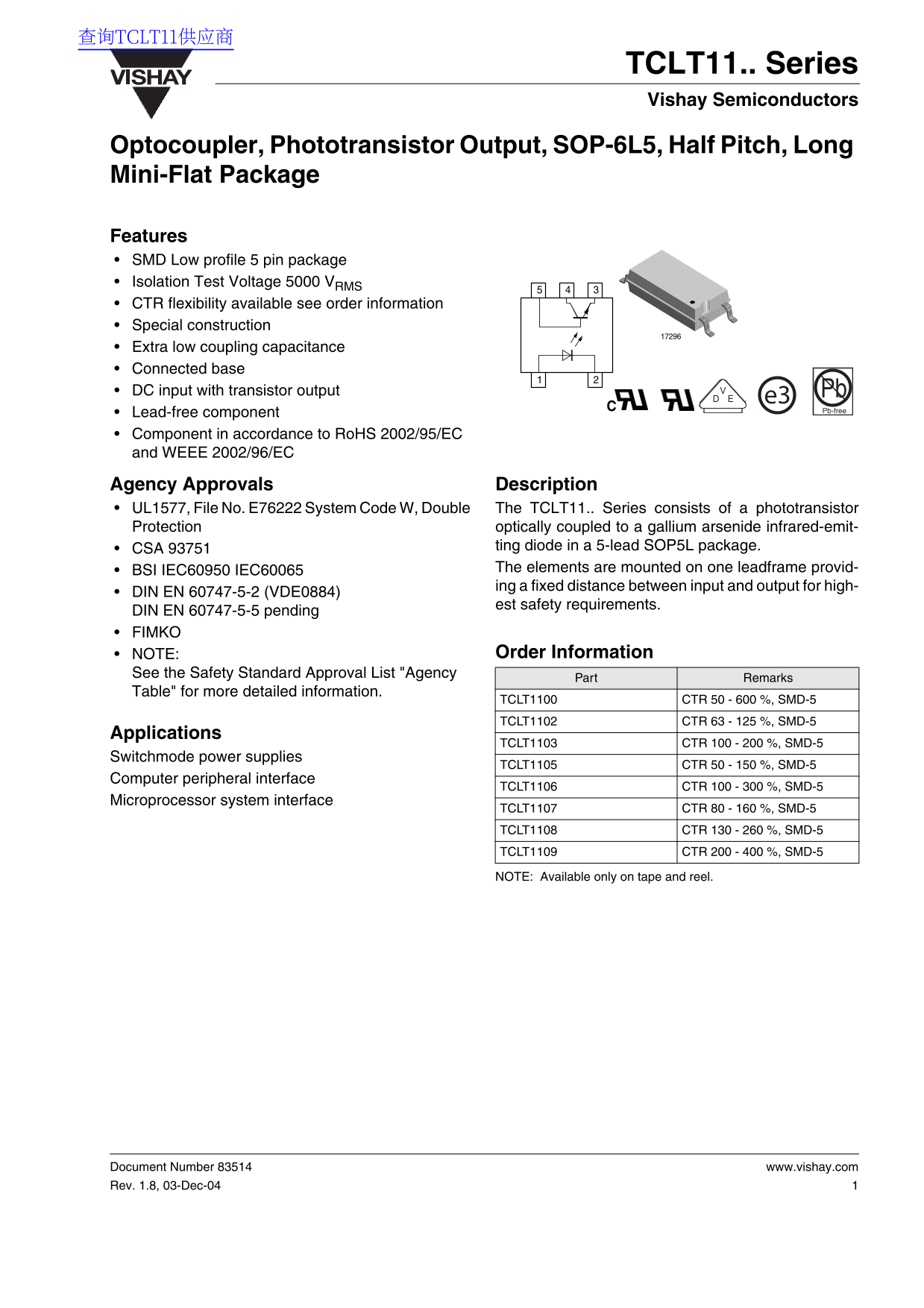

TCLT11.. Series Vishay Semiconductors
Optocoupler, Phototransistor Output, SOP-6L5, Half Pitch, Long Mini-Flat Package
Features SMD Low profile 5 pin package Isolation Test Voltage 5000 VRMS CTR flexibility available see order information Special construction Extra low coupling capacitance Connected base DC input with transistor output Pb
e3 Pb-free
Lead-free component Component in accordance to Ro HS 2002/95/EC and WEEE 2002/96/EC
Agency Approvals Description UL1577, File No. E76222 System Code W, Double The TCLT11.. Series consists of a phototransistor Protection optically coupled to a gallium arsenide infrared-emit-
CSA 93751 ting diode in a 5-lead SOP5L package. BSI IEC60950 IEC60065 The elements are mounted on one leadframe provid- ing a fixed distance between input and output for high-
DIN EN 60747-5-2 (VDE0884)
est safety requirements.
DIN EN 60747-5-5 pending FIMKO
NOTE: Order Information
See the Safety Standard Approval List "Agency
Part Remarks
Table" for more detailed information.
TCLT1100 CTR 50 - 600 %, SMD-5 TCLT1102 CTR 63 - 125 %, SMD-5
Applications
TCLT1103 CTR 100 - 200 %, SMD-5
Switchmode power supplies
TCLT1105 CTR 50 - 150 %, SMD-5
Computer peripheral interface
TCLT1106 CTR 100 - 300 %, SMD-5
Microprocessor system interface
TCLT1107 CTR 80 - 160 %, SMD-5 TCLT1108 CTR 130 - 260 %, SMD-5 TCLT1109 CTR 200 - 400 %, SMD-5
NOTE: Available only on tape and reel.
Document Number 83514 www.vishay.com Rev. 1.8, 03-Dec-04
