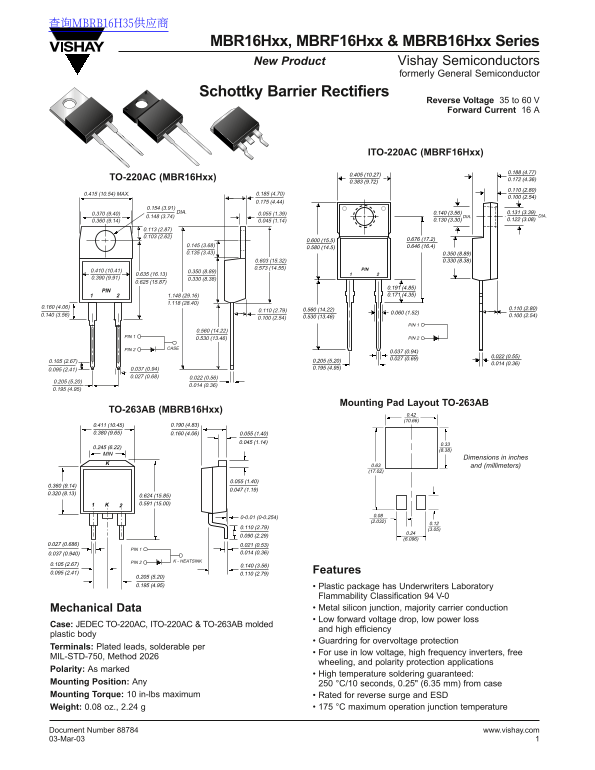

MBR16Hxx, MBRF16Hxx & MBRB16Hxx Series New Product Vishay Semiconductors
formerly General Semiconductor
Schottky Barrier Rectifiers
Reverse Voltage 35 to 60 V Forward Current 16 A
ITO-220AC (MBRF16Hxx)
TO-220AC (MBR16Hxx) 0.172 (4.36)
0.415 (10.54) MAX. 0.185 (4.70)
0.370 (9.40) DIA. 0.055 (1.39) 0.140 (3.56) 0.131 (3.39)
0.148 (3.74) DIA.DIA.
0.573 (14.55) PIN
PIN 1
PIN 1 0.530 (13.46) PIN 2
PIN 2 CASE
Mounting Pad Layout TO-263AB
TO-263AB (MBRB16Hxx)
Dimensions in inches
0.63 and (millimeters) (17.02)
PIN 1
PIN 2 K - HEATSINK
0.095 (2.41) 0.110 (2.79) Features
0.205 (5.20) 0.195 (4.95) • Plastic package has Underwriters Laboratory
Flammability Classification 94 V-0 Mechanical Data • Metal silicon junction, majority carrier conduction • Low forward voltage drop, low power loss
Case: JEDEC TO-220AC, ITO-220AC & TO-263AB molded
and high efficiency
plastic body
• Guardring for overvoltage protection
Terminals: Plated leads, solderable per
• For use in low voltage, high frequency inverters, free
MIL-STD-750, Method 2026
wheeling, and polarity protection applications
Polarity: As marked
• High temperature soldering guaranteed:
Mounting Position: Any 250 °C/10 seconds, 0.25" (6.35 mm) from case Mounting Torque: 10 in-lbs maximum • Rated for reverse surge and ESD
Weight: 0.08 oz., 2.24 g • 175 °C maximum operation junction temperature
Document Number 88784 www.vishay.com 03-Mar-03
Page Summary Contents For Vishay MBR16Hxx, MBRF16Hxx, MBRB16Hxx Series Data Sheet
Manual Details
| Brand | Vishay |
|---|---|
| Pages | 3 |
| File Size | 71.72 KB |
| Published | May 31, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What is the maximum safe operation junction temperature?
The operating junction temperature range ($ ext{T}_{ ext{J}}$) is from –65 to +175 °C.
How should I mount this rectifier component?
Mounting Position: Any. Use a mounting torque of 10 in-lbs maximum.
What types of packages are available for this series?
Available cases include JEDEC TO-220AC, ITO-220AC, and TO-263AB.
