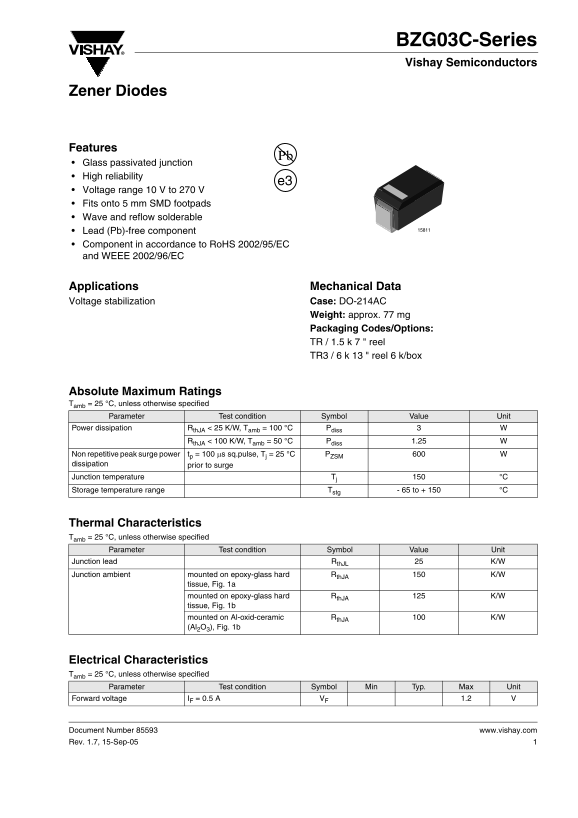

Page 1 Text Content
BZG03C-Series Vishay Semiconductors
Zener Diodes
Features Glass passivated junction High reliability
Voltage range 10 V to 270 V Fits onto 5 mm SMD footpads Wave and reflow solderable Lead (Pb)-free component Component in accordance to Ro HS 2002/95/EC and WEEE 2002/96/EC
Applications Mechanical Data Voltage stabilization Case: DO-214AC
Weight: approx. 77 mg Packaging Codes/Options: TR / 1.5 k 7 " reel TR3 / 6 k 13 " reel 6 k/box
Absolute Maximum Ratings Tamb = 25 °C, unless otherwise specified
Parameter Test condition Symbol Value Unit
Power dissipation Rth JA < 25 K/W, Tamb = 100 °C Pdiss
Rth JA < 100 K/W, Tamb = 50 °C Pdiss 1.25
Non repetitive peak surge power tp = 100 µs sq.pulse, Tj = 25 °C PZSM dissipation prior to surge Junction temperature Tj °C Storage temperature range Tstg - 65 to + 150 °C
Thermal Characteristics Tamb = 25 °C, unless otherwise specified
Parameter Test condition Symbol Value Unit
Junction lead Rth JL K/W
Junction ambient mounted on epoxy-glass hard Rth JA K/W
tissue, Fig. 1a
mounted on epoxy-glass hard Rth JA K/W
tissue, Fig. 1b
mounted on Al-oxid-ceramic Rth JA K/W
(Al2O3), Fig. 1b
Electrical Characteristics Tamb = 25 °C, unless otherwise specified
Parameter Test condition Symbol Min Typ. Max Unit
Forward voltage IF = 0.5 A VF 1.2
Document Number 85593 www.vishay.com Rev. 1.7, 15-Sep-05
Page Summary Contents For Vishay BZG03C-Series Manual
Manual Details
| Brand | Vishay |
|---|---|
| Pages | 6 |
| File Size | 155.41 KB |
| Published | May 28, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What voltage range is available in the BZG03C series?
The Zener Diodes cover a wide voltage range, from 10 V up to 270 V.
Is this component compatible with modern environmental standards?
Yes, it is a lead (Pb)-free component and compliant with both RoHS and WEEE directives.
What type of physical mounting supports the BZG03C diode?
It uses glass passivated junctions and fits onto 5 mm SMD footpads, supporting wave and reflow soldering.
Are these diodes suitable for medical or life-sustaining equipment?
No, the products are not designed for use in medical, life-saving, or life-sustaining applications unless expressly indicated.
