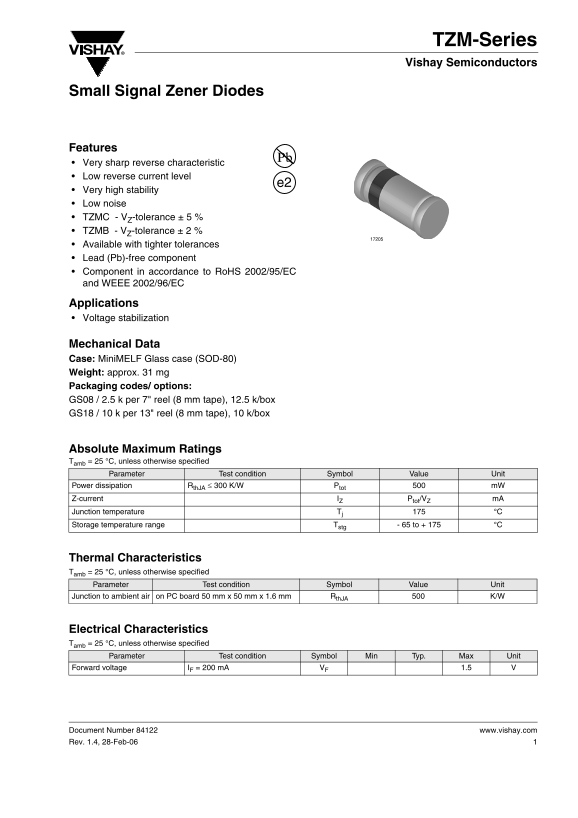

TZM-Series Vishay Semiconductors
Small Signal Zener Diodes
Features Very sharp reverse characteristic Low reverse current level
Very high stability Low noise TZMC - VZ-tolerance ± 5 % TZMB - VZ-tolerance ± 2 % Available with tighter tolerances Lead (Pb)-free component Component in accordance to Ro HS 2002/95/EC and WEEE 2002/96/EC
Applications Voltage stabilization
Mechanical Data Case: Mini MELF Glass case (SOD-80) Weight: approx. 31 mg Packaging codes/ options: GS08 / 2.5 k per 7" reel (8 mm tape), 12.5 k/box GS18 / 10 k per 13" reel (8 mm tape), 10 k/box
Absolute Maximum Ratings Tamb = 25 °C, unless otherwise specified
Parameter Test condition Symbol Value Unit
Power dissipation Rth JA ≤ 300 K/W Ptot m W
Z-current IZ Ptot/VZ m A Junction temperature Tj °C Storage temperature range Tstg - 65 to + 175 °C
Thermal Characteristics Tamb = 25 °C, unless otherwise specified Parameter Test condition Symbol Value Unit
Junction to ambient air on PC board 50 mm x 50 mm x 1.6 mm Rth JA K/W
Electrical Characteristics Tamb = 25 °C, unless otherwise specified
Parameter Test condition Symbol Min Typ. Max Unit
Forward voltage IF = 200 m A VF 1.5
Document Number 84122 www.vishay.com Rev. 1.4, 28-Feb-06
