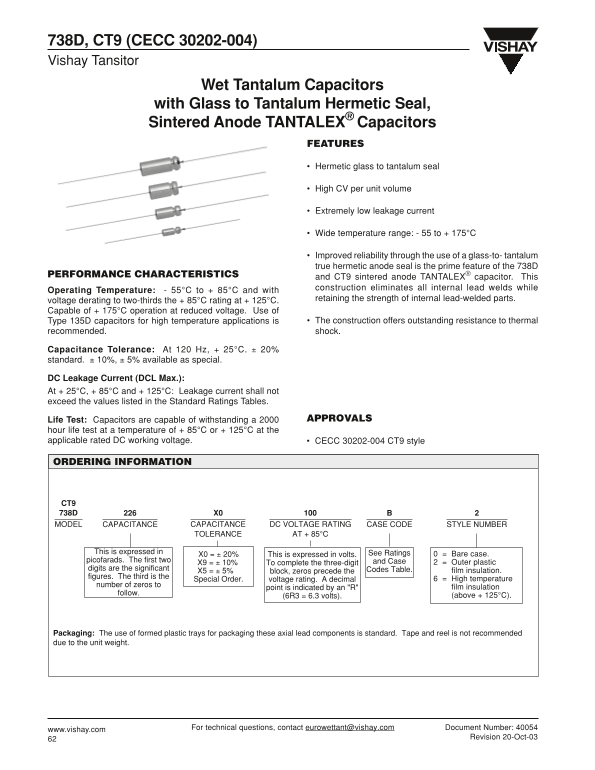

Page 1 Text Content
738D, CT9 (CECC 30202-004) Vishay Tansitor
Wet Tantalum Capacitors with Glass to Tantalum Hermetic Seal, Sintered Anode TANTALEX® Capacitors
FEATURES
Hermetic glass to tantalum seal
High CV per unit volume
Extremely low leakage current
Wide temperature range: - 55 to + 175°C
Improved reliability through the use of a glass-to- tantalum true hermetic anode seal is the prime feature of the 738D
PERFORMANCE CHARACTERISTICS
and CT9 sintered anode TANTALEX® capacitor. This construction eliminates all internal lead welds while
Operating Temperature: - 55°C to + 85°C and with
retaining the strength of internal lead-welded parts.
voltage derating to two-thirds the + 85°C rating at + 125°C. Capable of + 175°C operation at reduced voltage. Use of
Type 135D capacitors for high temperature applications is The construction offers outstanding resistance to thermal
recommended. shock.
Capacitance Tolerance: At 120 Hz, + 25°C. ± 20% standard. ± 10%, ± 5% available as special.
DC Leakage Current (DCL Max.): At + 25°C, + 85°C and + 125°C: Leakage current shall not exceed the values listed in the Standard Ratings Tables.
Life Test: Capacitors are capable of withstanding a 2000 APPROVALS
hour life test at a temperature of + 85°C or + 125°C at the applicable rated DC working voltage. CECC 30202-004 CT9 style
ORDERING INFORMATION
CT9 738D X0 MODEL CAPACITANCE CAPACITANCE DC VOLTAGE RATING CASE CODE STYLE NUMBER
TOLERANCE AT + 85°C
This is expressed in See Ratings
X0 = ± 20% This is expressed in volts. 0 = Bare case.
picofarads. The first two and Case
X9 = ± 10% To complete the three-digit 2 = Outer plastic
digits are the significant Codes Table.
X5 = ± 5% block, zeros precede the film insulation.
figures. The third is the
Special Order. voltage rating. A decimal 6 = High temperature
number of zeros to
point is indicated by an "R" film insulation
follow.
(6R3 = 6.3 volts). (above + 125°C).
Packaging: The use of formed plastic trays for packaging these axial lead components is standard. Tape and reel is not recommended due to the unit weight.
For technical questions, contact [email protected] Document Number: 40054
www.vishay.com
Revision 20-Oct-03
